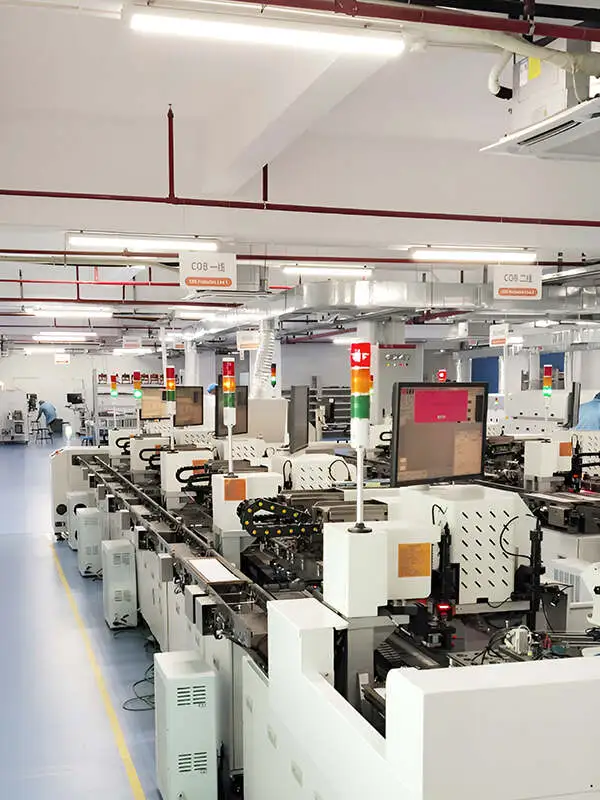

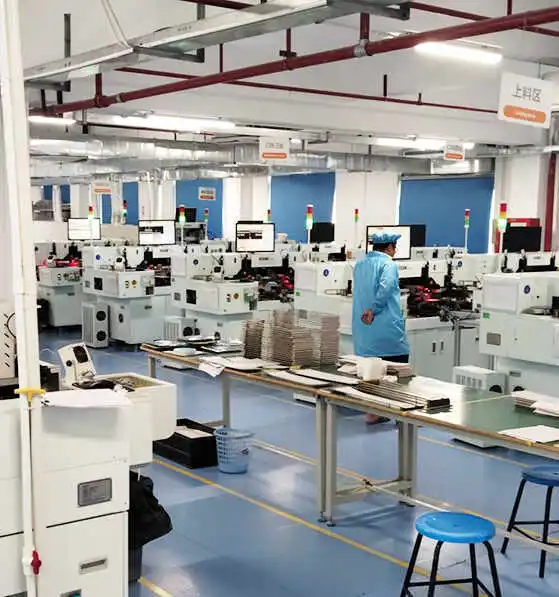

Behind the Scenes: COB LED Strip Production
This simply step-by-step breakdown should help in clearly understanding the manufacturing process.

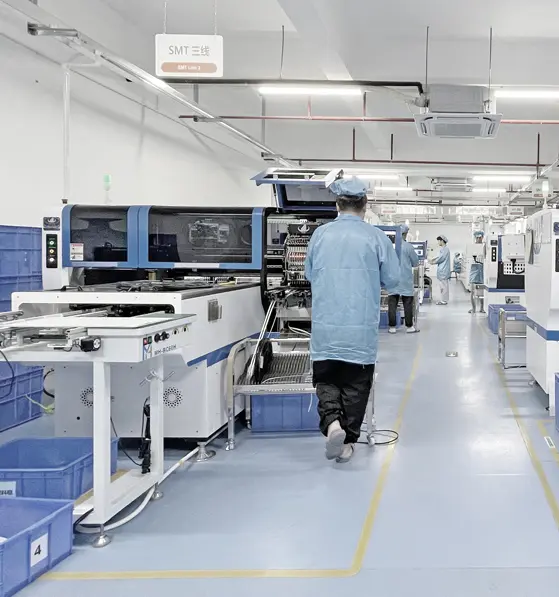

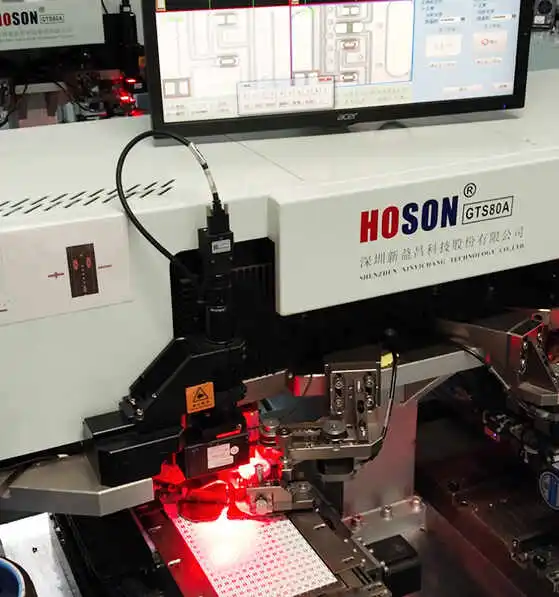

- Attach the light-emitting chips and resistors to the PCB board using a die-bonding machine；

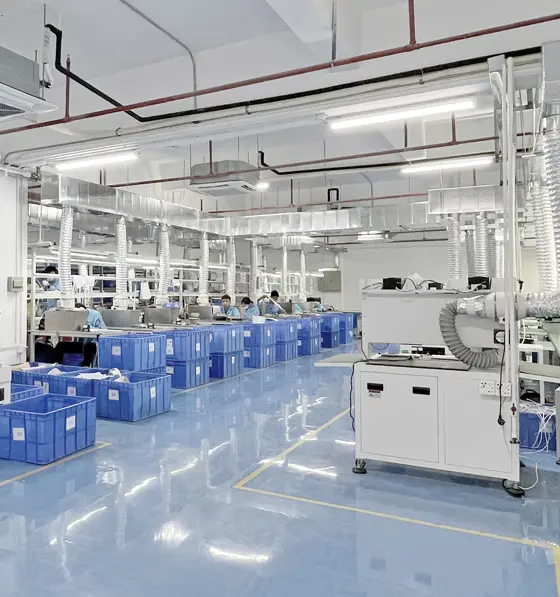

- Perform reflow soldering machine to securely connect the chips, resistors, and FPC;

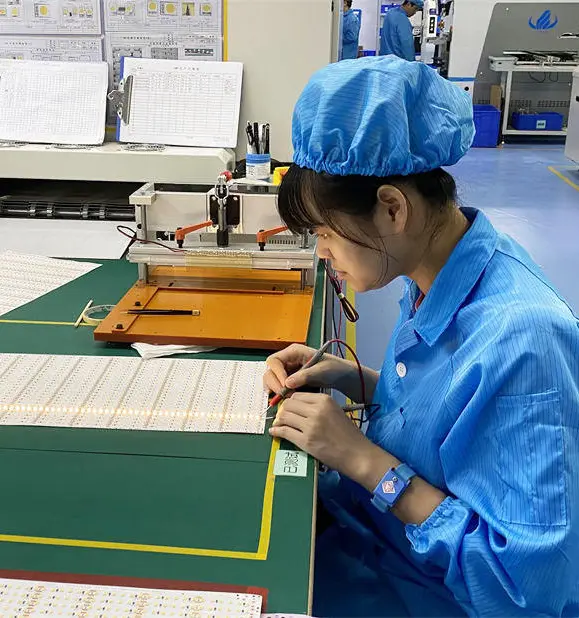

- After soldering, conduct inspection and maintenance to ensure the LED strip meets quality standards;
- Adjust the Phosphor Glue based on the customer’s required color temperature;
- Apply the adjusted phosphor gel to the chip surface, then cure the gel in a high-temperature oven to stabilize and solidify the LED strip structure;
- Cut the dried semi-finished product into individual strips precisely, and test the performance and quality of the COB LED strips again;

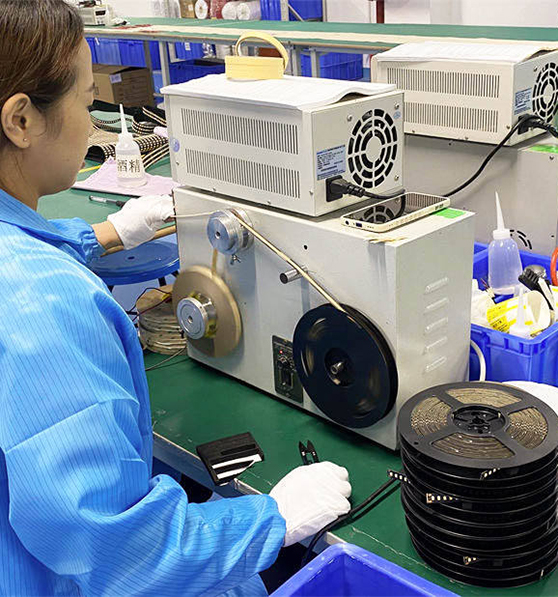

- Apply backing adhesive Tape, Roll the strips, Package the strips, and prepare them for shipment;
- 1

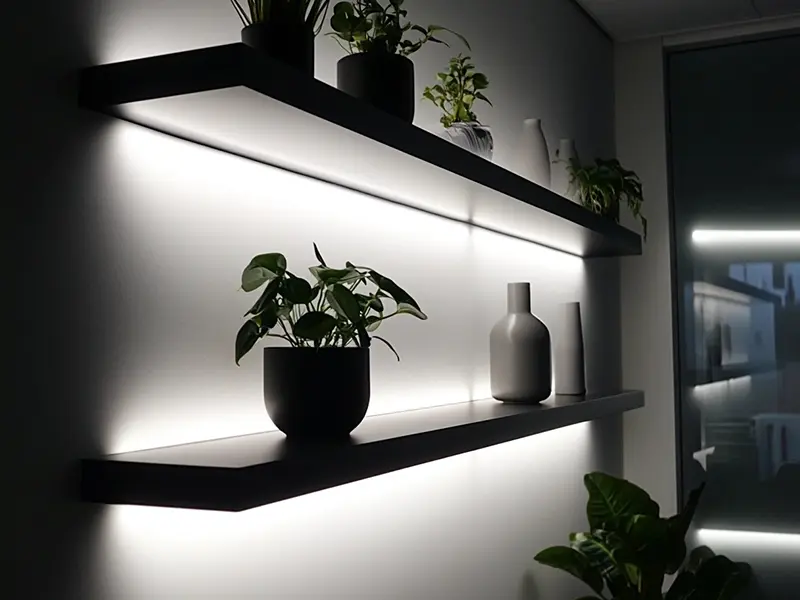

Dot Free: Provides continuous and uniform light output;
- 2
High Efficiency: 90-120Lm/W and more energy-efficient;
- 3
High CRI:More accurately render the true colors of object
- 4
Less Glare: typically have a lower Unified Glare Rating (UGR)
- 5
Wide Beam Angle：Wide 180-degree beam angle for broader light coverage；
- 6
Highly Flexible:Easy integration into various lighting designs;
- 7
Long Life Span:Better heat dissipation and longer lifespan;
COB LED Strip vs. SMD LED Strip: Key Differences
COB vs. SMD: Which LED Strip is Right for You?
COB (Chip on Board) and SMD (Surface-Mounted Device) LED strips are two popular types of LED strips used in various lighting applications. While they both serve the purpose of providing flexible, linear lighting solutions, they have distinct differences in terms of design, appearance, performance, and application. Here’s a breakdown of the key differences between COB LED Strip and SMD LED strip.
| Difference | COB LED Strip | SMD LED Strip |
|---|---|---|
| Technology | Chip on Board without package | Surface-Mounted on Flexible PCB |

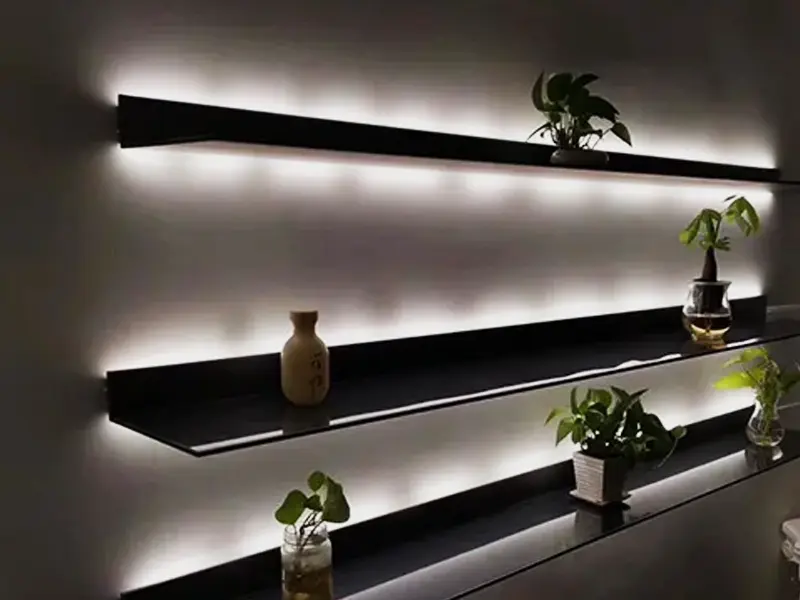

| Light Effect | Dot Free,continuous light output | Visible dot effect due to individual LEDs |
| Power | Low Power | High Power |
| Beam Angle | 180° | 120° |
| Color /CCT | unable to customized | Available in Customization |
| Heat Dissipation | Better Heat dissipation | Slightly low efficiency in Heat management |
| Flexibility | Highly flexible and can easily curve | Flexible |
| Energy efficiency | more energy-efficient | Efficiency depends on the type of SMD LED |
| Color Consistency | Superior color consistency and higher CRI | Varies; depends on LED type and manufacturer |
| Brightness | Uniform brightness along the length of the strip | May vary along the strip depending on LED spacing |
| Lifespan | Longer lifespan due to better heat management | Good lifespan but dependent on heat management |
| Application | Ideal for professional, architectural, and linear lighting | Suitable for decorative, ambient, accent, and dynamic lighting (RGB/RGBW) |
| Installation and Cut Points | More frequent cut points for precise customization | Cut points depend on the model, typically every 3 or 5 LEDs |
| Cost | Higher initial cost due to advanced technology and density | Generally lower cost; wide range of price points |
Waterproof COB LED Strips
We offer Multiple Waterproof Ratings (IP54, IP65, IP67)
How to Installation COB LED Strip?
How to Connect your COB Strip?

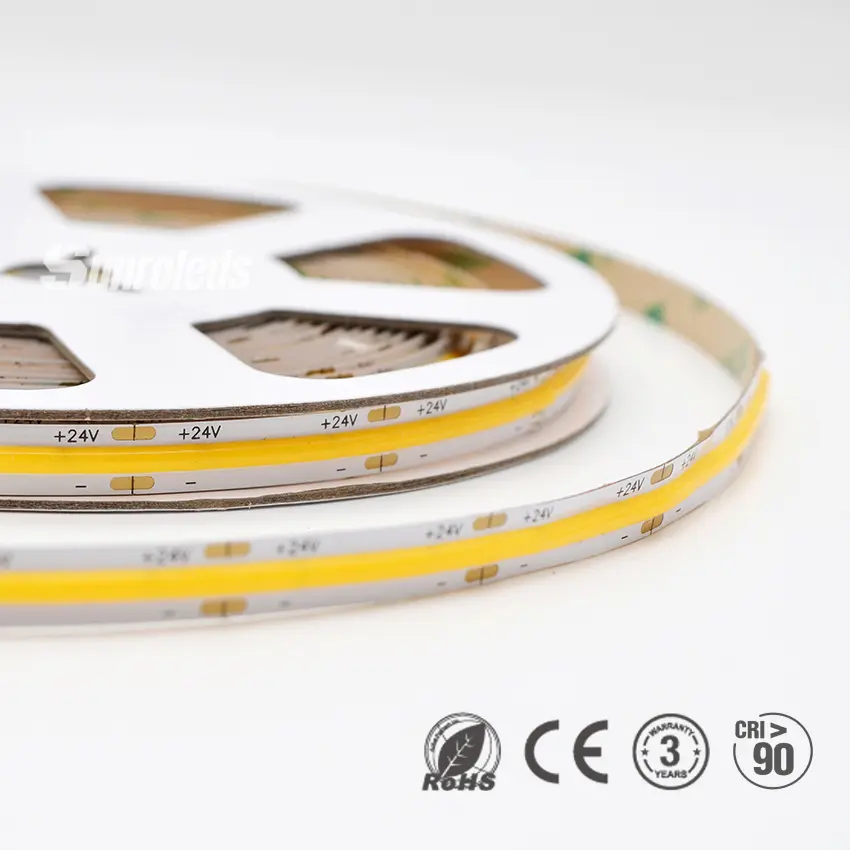

Product Details and Quality Highlights
High quality COB LED–5 years warranty
The COB phosphor quality is crucial for COB LED Tape lights as it directly affects the light’s color rendering performance, light efficiency, and lifespan.High-quality phosphor ensure uniform color, improving CRI Values, increase Light efficiency, reduce light decay and extend lifepsan.
Our Preimum quality COB LED Strip Light Features following
- Super High Light efficiency is 100-120Lm/W;
- CRI>90 and CRI>95 available;
- One Bin, SDCM<3 to ensure uniform color;
- >50000 hours, 5 years Warranty;
Highly Flexible-High quality FPC,
Our standard high-quality FPC is a double-sided 2-ounce copper FPC made from polyimide material. The copper foil has a standard thickness of 35/35 microns, providing excellent performance for high-temperature, high-frequency, and high-durability applications. This FPC offers superior flexibility and chemical resistance but comes at a higher cost.
In the market, FPC copper foils are also available in other thicknesses such as 18/18, 12/12, and 18/35 microns.These alternatives cater to different application needs and cost considerations, offering varying levels of flexibility, temperature tolerance, and electrical performance.
Wide 180° Viewing Angle
The COB LED strip features an exceptional 180° wide-angle light distribution, ensuring expansive and uniform illumination across large areas. This wide viewing angle minimizes shadowing and enhances the visibility of your space, making it ideal for a variety of applications, from residential to commercial settings.
Cuttable — Tailer your needs
Our COB LED strips are designed with a cuttable feature, allowing you to adjust the length according to your specific project requirements. With cut marks placed at regular intervals, you can easily and safely trim the strip to the desired size without affecting its overall performance.
Easier Installation-Orignal 3M Adhesive Tape
Our default adhesive tape is the original imported 300LSE adhesive tape. Manufactured by 3M Company, this tape utilizes patented pressure-sensitive adhesive technology, offering exceptional initial tack and long-lasting adhesion. It is especially effective for bonding low surface energy materials such as plastics, powder coatings, and foams.
This tape is the preferred choice for high-performance applications requiring reliable, long-term bonding. Its superior adhesion, stability, and weather resistance, combined with the trustworthiness of a globally recognized brand, make it ideal for demanding applications.
Highly Durable–CE Listed 20AWG Cable
Our standard wires are CE-listed 20AWG cables. Compared to 24AWG and 22AWG cables, 20AWG is the thickest, providing the highest durability and safety. However, it comes with a higher cost and less flexibility.
Advantages of 20AWG Wires include:
- Reduced Voltage Drop
- Higher Current Carrying Capacity
- Enhanced Reliability and Safety
- Suitable for Longer Cable Runs
- Supports Higher Power LED Strips
- Reduced Electrical Resistance
- Improved Installation Flexibility
How to Choose COB LED Strip Lights?
Choosing the right COB LED strip light involves considering several key factors to ensure it meets your specific needs and application requirements. Here’s a guide to help you make the best choice
Choose the Correct Color Temperature
- Warm White (2700K-3000K): Ideal for cozy and relaxing environments like living rooms or bedrooms.
- Neutral White (4000K-4500K): Suitable for workspaces or kitchens where a balance of warmth and brightness is needed.
- Cool White (6000K-6500K): Best for task lighting, garages, or modern aesthetics.

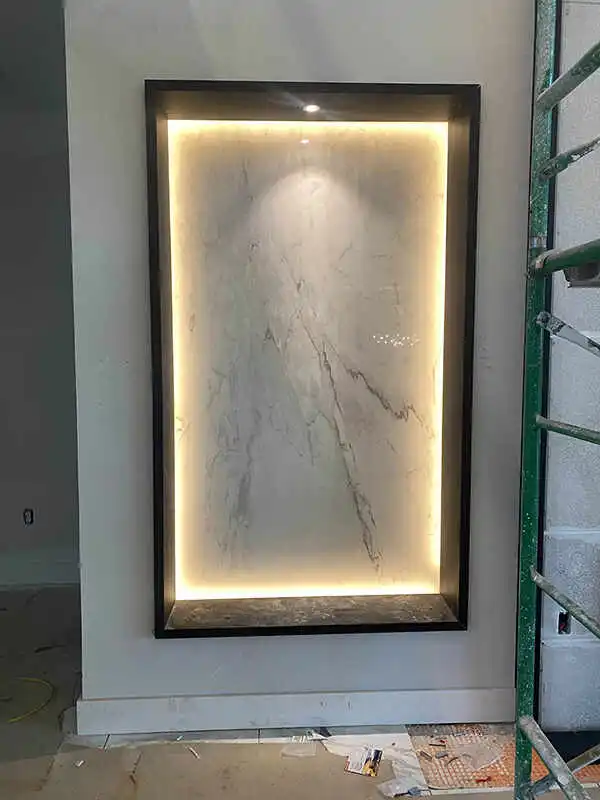

Case Studies
Home Decor | Commercial use | Accent Lighting | Outdoor Lighting

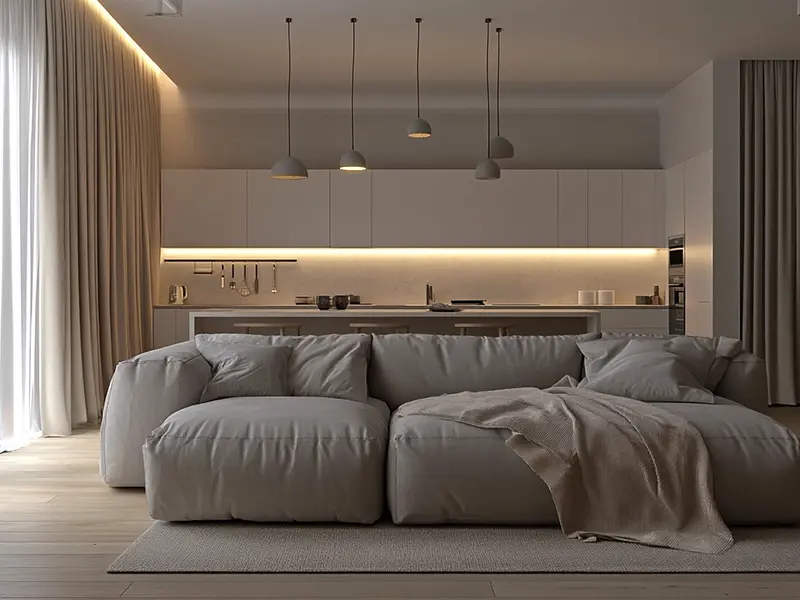

Home Decor

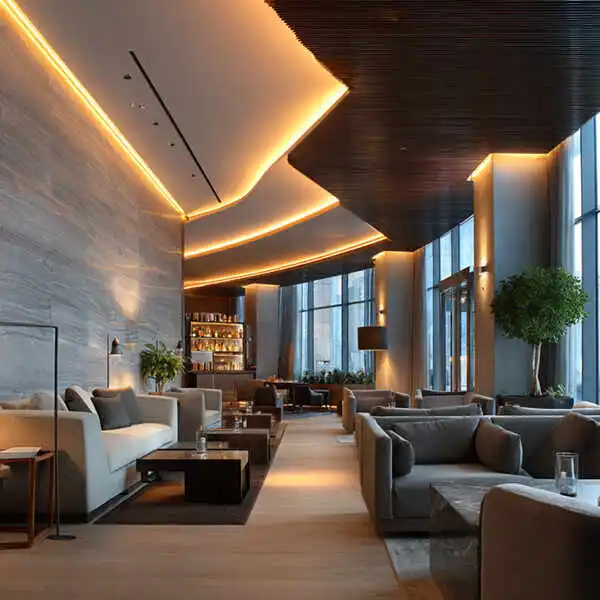

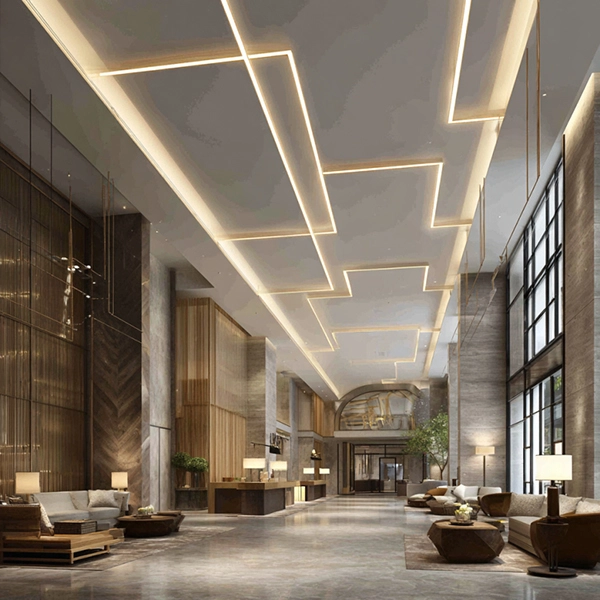

Hotel
KTV
Cinema
Landscape
Bridge Light
Villa Lighting
Office Light
Custom your COB LED Light Strip
Whether it’s for retail, projects, or specialized applications, our high-quality custom LED strips are designed to fit perfectly into your vision.
Why choose us?
Frequently Asked Questions (FAQ)
Yes, we do offer more affordable pricing options. The price difference comes from the use of varying qualities of COB LED phosphor and Glue. Specifically:
- Standard Quality: Uses high-grade COB LED phosphor and Glue, ensuring optimal performance, brightness, Light efficiency and longevity. This option is covered by our 5-year warranty.
- ECO Quality: Features a more cost-effective COB LED phosphor and Glue, which allows for a lower price point. While this option is more budget-friendly, it still maintains high standards for durability and reliability, 3 years warranty. though it may not offer the same level of brightness and performance as the standard quality.
We are committed to providing value and can help you choose the best option based on your specific needs and budget. Please let us know if you would like more details or have any other questions.
Yes, you can cut the COB LED strip and still use the connectors. We offer three types of connectors to suit your needs:
- Straight Connectors: For joining two strips in a straight line.
- L-shaped Connectors: Ideal for making right-angle connections.
- T-shaped Connectors: Perfect for creating T-junctions in your lighting setup.
- X-shaped Connectors: For connecting four strips in a cross shape。
- Middle Wire Connectors: Featuring a 15cm wire for flexible middle connections.
- 15cm Long Wire Connectors: For extended length connections.
For more details, Please contact us
We offer both waterproof and non-waterproof models. The waterproof COB LED strips are suitable for outdoor and damp environments, with an IP65 rating or higher IP67,IP68.

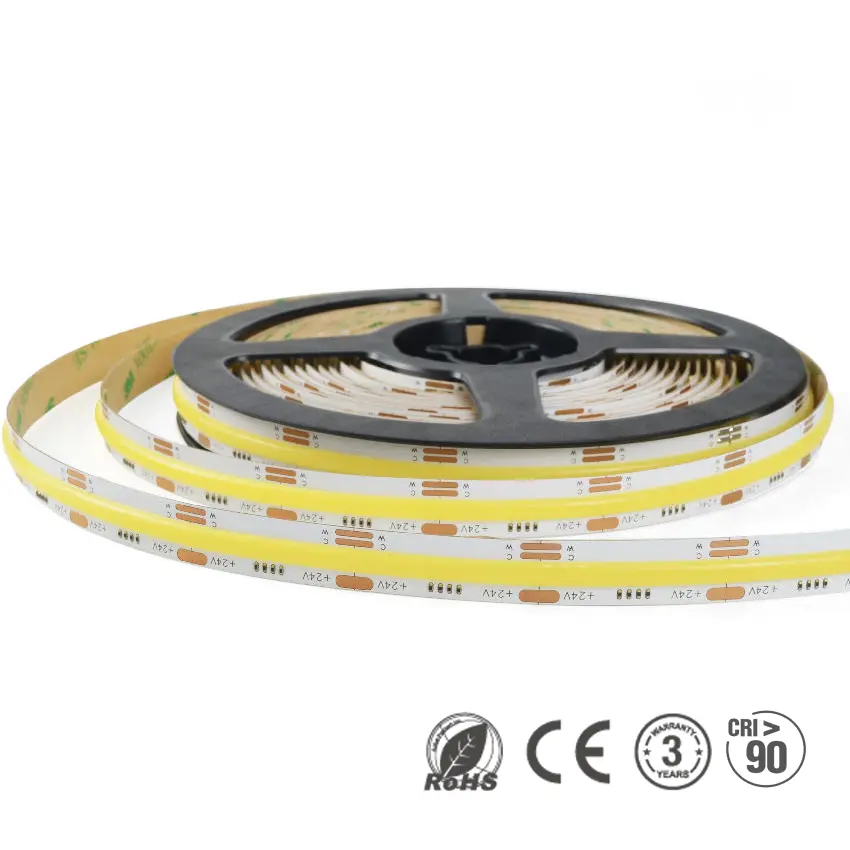

Yes, many COB LED strip models support dimming functions. The brightness can be adjusted using a controller or dimmer switch. Some models also support smart control and are compatible with smart home systems, for example, Ajustable CCT COB LED Strip, CCT Tunable COB White LED Strip offer these advanced features.
The lifespan of COB LED strip light is typically over 50,000 hours, depending on the usage environment and conditions. All our COB LED strips undergo rigorous testing to ensure that, under suitable conditions, they can achieve or even exceed this lifespan.
The COB LED Strip can be bent, but it should not be distorted or twisted. Bending should be done gently along the natural bending axis to ensure the strip’s integrity and performance.

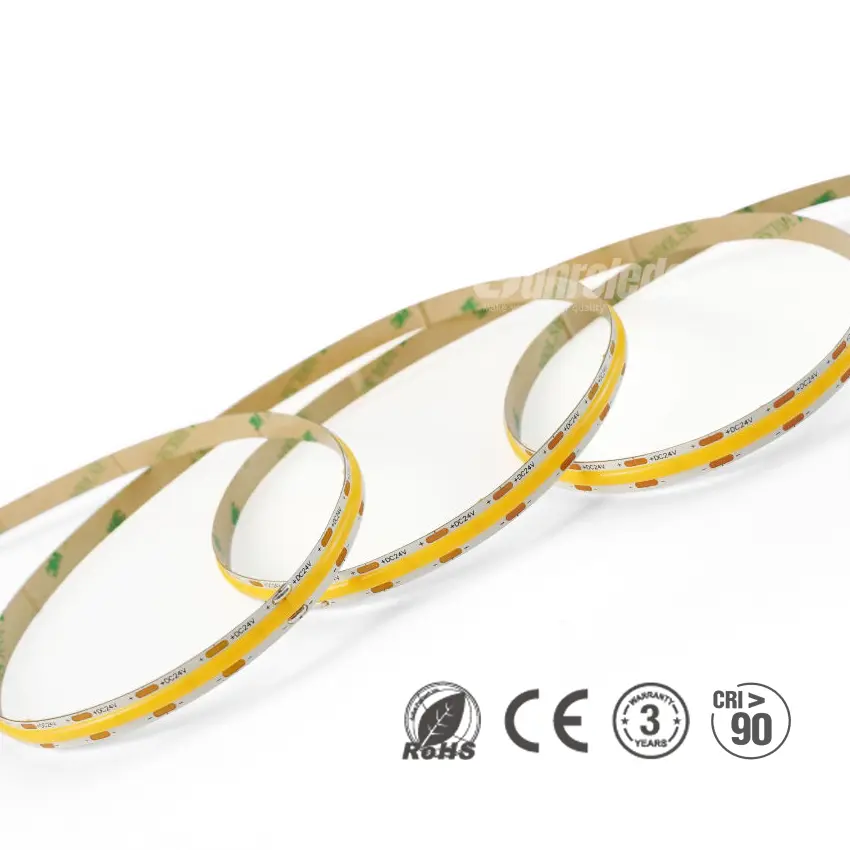

We offer a unique COB LED Strip Free Cut Version, This innovative design allows you to cut the strip wherever you need, providing unparalleled flexibility for your lighting projects
No MOQ required. We value each clients, no matter wholesales or Project Client, No matter small orders or big orders. but more Quantity, More favorable price.
