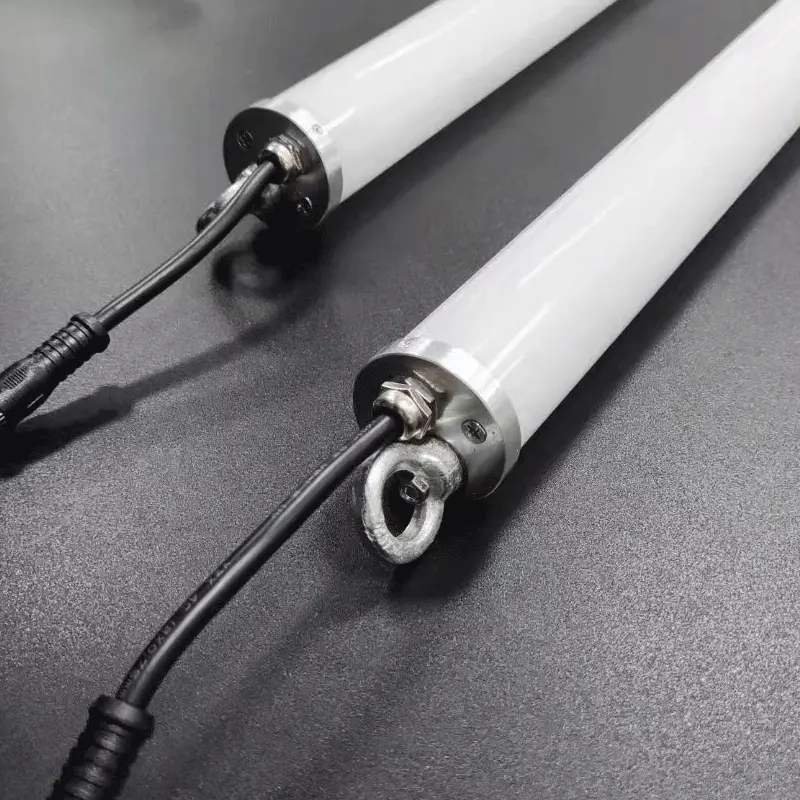

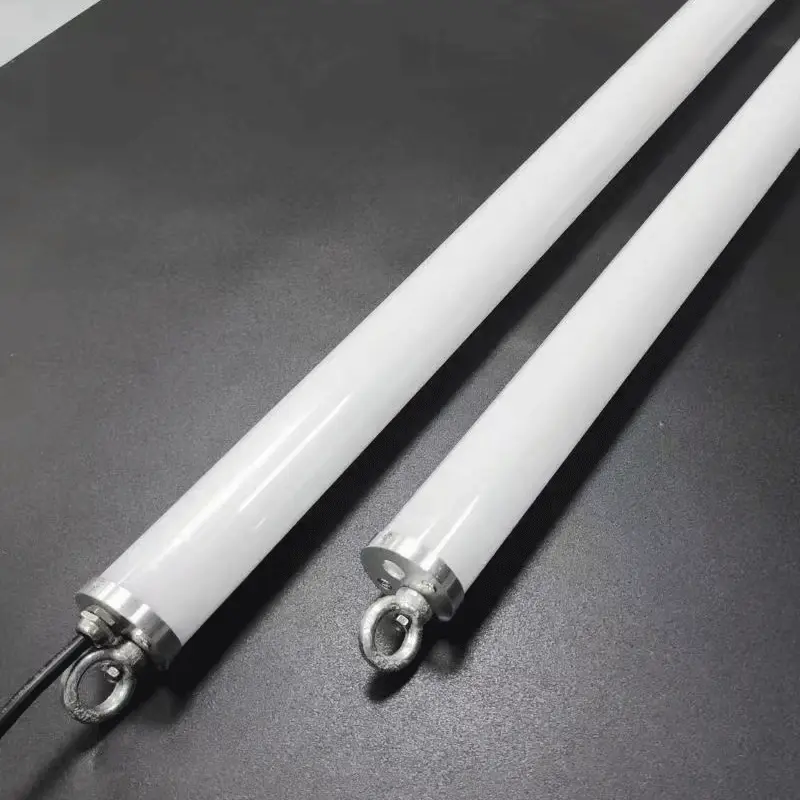

LED Digital Tube
The LED digital Tube lights adopt double-sided led design, with high brightness and ensuring 360 ° dark area free, Luminous angle, which can fully display creative effects in on-site applications; it made of PC shell material, high temperature resistance, IP67 Waterproof design and can withstand 130 ℃ for long-term use,it Can work in most cloudy and rainy weather, extending the service life of the product.
Technical Parameter
| Model | SR-LT-C20 |
|---|---|
| Voltage | DC12V / 24V |
| Power | 40W |
| LED Brand | OSRAM / Epistar / customized |
| LED Qty | 144pcs 5050 SMD |
| IC Type | UCS512C4 / Customized |
| Controlling Modes | DMX512 |
| Material | Fireproof PVC |
| Gray scale | 8 bit 256 scale |
| IP Rated | IP67 |
| Cable Length | 15cm |
| Colors | Signle color / Full color |
| Working life | > 50000 hours |
| Viewing angle | 360° |
| Working temperature | -20℃~+60℃ |
| Storage Temperature | -40℃~+75℃ |
| Dimension | 40×40 x 100 |
| Warranty | 3 years warranty |

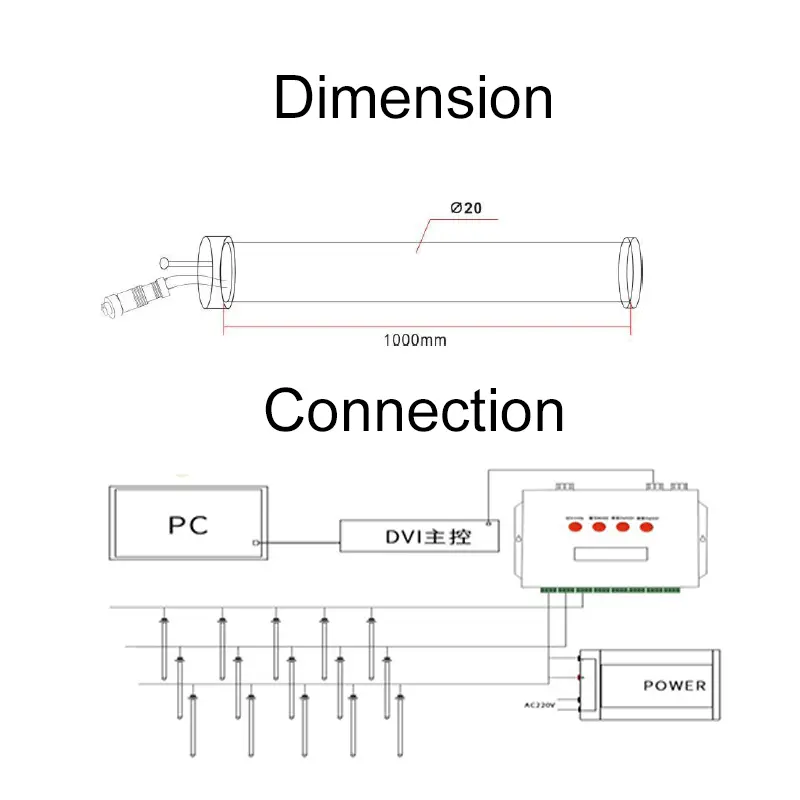

Dimension and Connection

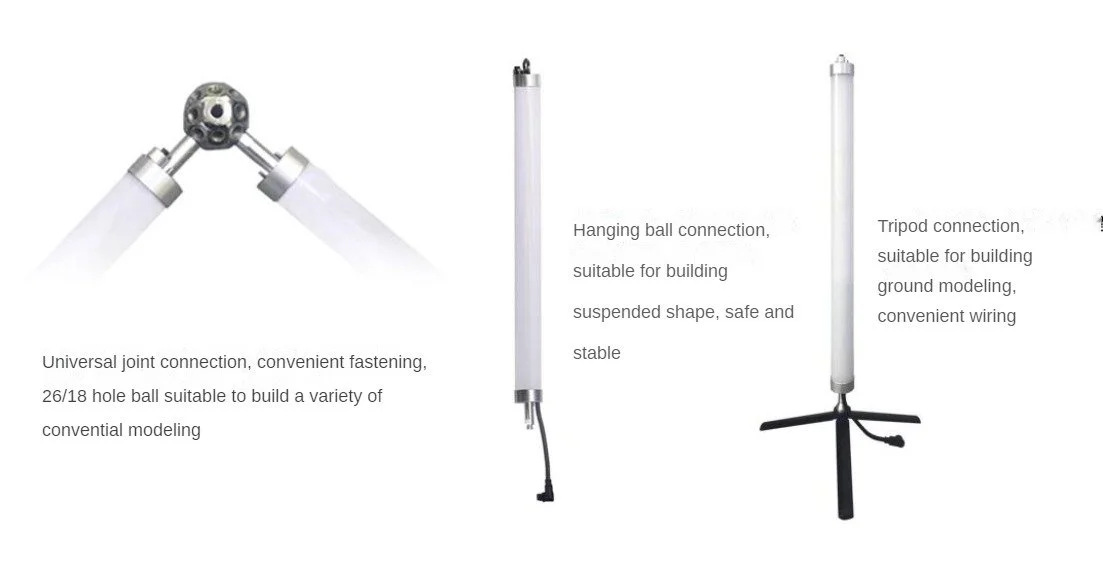

Detail
