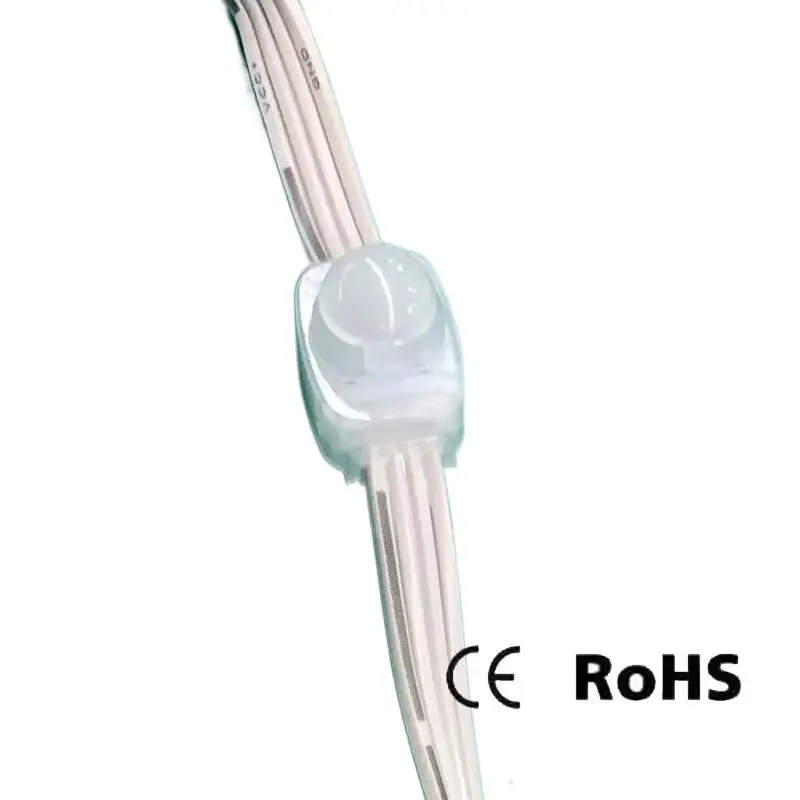

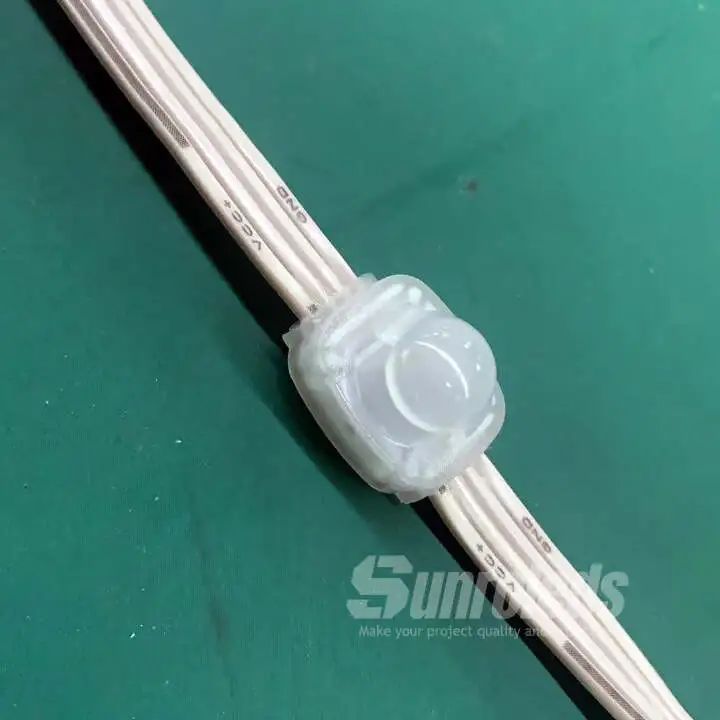

12mm LED Pixel String Lights for sign
This 12mm programmable LED string light features ultra-bright SMD3535RGB chips, DMX512 control, and a durable, waterproof design, ensuring energy efficiency, reliability, and exceptional lighting performance. Its customizable installation and user-friendly design make it ideal for innovative and versatile signage solutions.
Technical Parameter
| Part NO | SR-F12-2RGBD |
|---|---|
| LED Type: | Epistar 3535 RGB LED |
| LED Qty/m: | 2 LEDs |
| Voltage: | DC12V |
| IC Type: | DMX512 / Breakpoint resume |
| Power: | 0.6W |
| Dimension: | 12mm |
| Colors: | Full Color |
| Current: | 50mAh |
| Beam angle: | 180° |
| Lumen: | R:620-625 ; G:520-525; B:465-479 |
| Max in series: | 40pcs |
| Material: | PC + Silicone Glue |
| Working Temperature: | -20° C –+50° C |
| Strong Temperature: | -40° C –+70° C |
| Humidity: | 5%-95% |
| Working Hours: | >500000 hours |
| Cut Unit | Free Cut |
| IP Rated: | IP66 |
| Warranty: | 3 years warranty |
12mm String Lights Advantages
1.Ultra-High Brightness:
Equipped with SMD3535RGB chip featuring top-tier brightness, energy efficiency, and environmentally friendly design.
2. Optimized Voltage & Signal Transmission:
- Operates at 12V, ensuring low voltage drop and consistent brightness.
- Utilizes an international DMX512 differential signal protocol.
- Innovative bypass feature ensures the entire string functions seamlessly even if one LED fails.
- Built-in controller with 30 pre-set automatic effects for effortless plug-and-play operation.
3.Innovative Design with Enhanced User Experience
- Unique all-in-one injection molding ensures a stylish and modern design.
- Incorporates user-centric features and advanced technological elements for enhanced customer satisfaction.
4. Enhanced Lens Design:
- Integrated lens design boosts light output efficiency.
- Achieves a wider and more uniform beam angle, delivering superior visual effects.
- Resistant to UV radiation, waterproof, anti-corrosion, and acid/alkali-proof, ensuring durability and longevity without rusting.
5. Customizable Lengths:
- Each String light is easily cuttable to meet various design and project needs.
String Lights Application
The SMD LED String Lights are a newly developed product by our company, designed for extensive use in bars, KTVs, entertainment venues, LED Display and other outdoor applications. It is ideal for advertising signs, large metal perforated letters, and massive sky screens, among other settings.
Dimmension
12mm String Lights Connection Guide
Installation Method
1. Snap-in Installation
– The string lights Compatible with panel materials such as stainless steel, aluminum, plastic, and iron.
– Supports panel thickness options ranging from 0.8mm to 2.8mm, with an opening diameter requirement of 12mm.
2. Customizable Panel Accessories
-We can supply panel accessories made of aluminum or other materials based on customer requirements, ensuring easy and convenient installation.
3.Recommended Light Point Spacing
– For optimal visual effect, the center-to-center spacing between light points should be 3-6 cm, depending on the height of the sign installation.
