Pixel LED Dot Matrix
The Pixel RGB LED Dot matrix could be defined by the number of rows and columns of LEDs, determining the overall resolution of the display.it is essential in creating vibrant and engaging digital displays, offering high customization and the ability to render text, images, and animations with clarity and impact.
Technical Parameter
| Part NO | SR-F40-6RGBD |
|---|---|
| LED Type: | 5050 rgb /3535 RGB LED |
| LED Qty/m: | 6 LEDs |
| Voltage: | DC24V |
| IC Type: | 1903IC / 16703 / DMX512 |
| Power: | 1.2W |
| Dimension: | φ40mm |
| Colors: | 1800K~7500K,W/R/G/B/Y,RGB,RGBW / Full Color |
| Grey-Scale: | 8 bit |
| Beam angle: | 120° |
| Surface Cover: | Transparent / sandy |
| Max in series: | 40pcs |
| Material: | UV Resistance, Fireproof PC Material |
| Working Temperature: | -20° C –+60° C |
| IP Rated: | IP67 |
| Working Life: | >50000 hours |

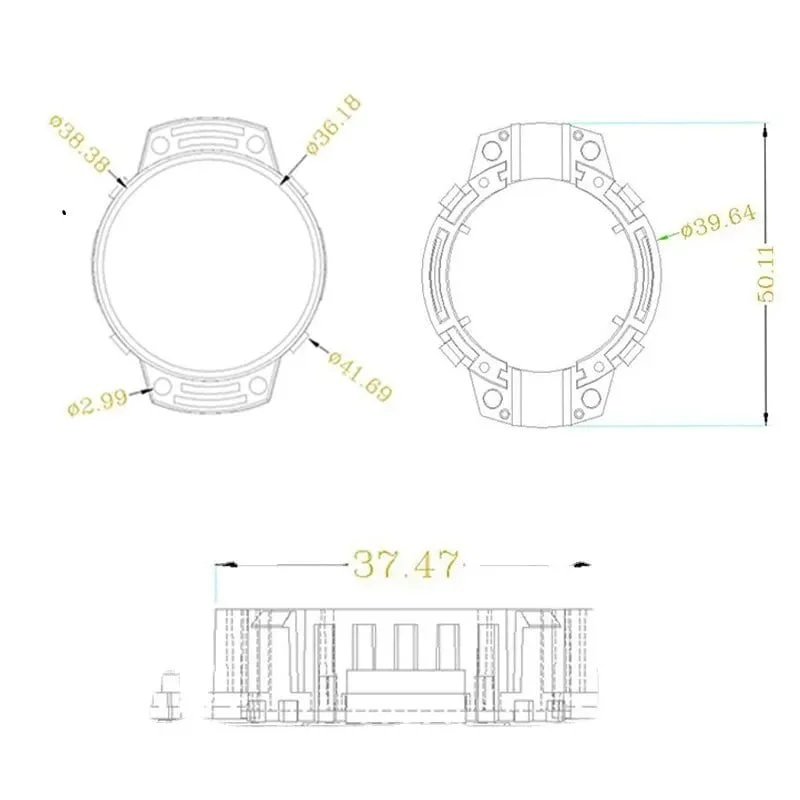

Dimension
