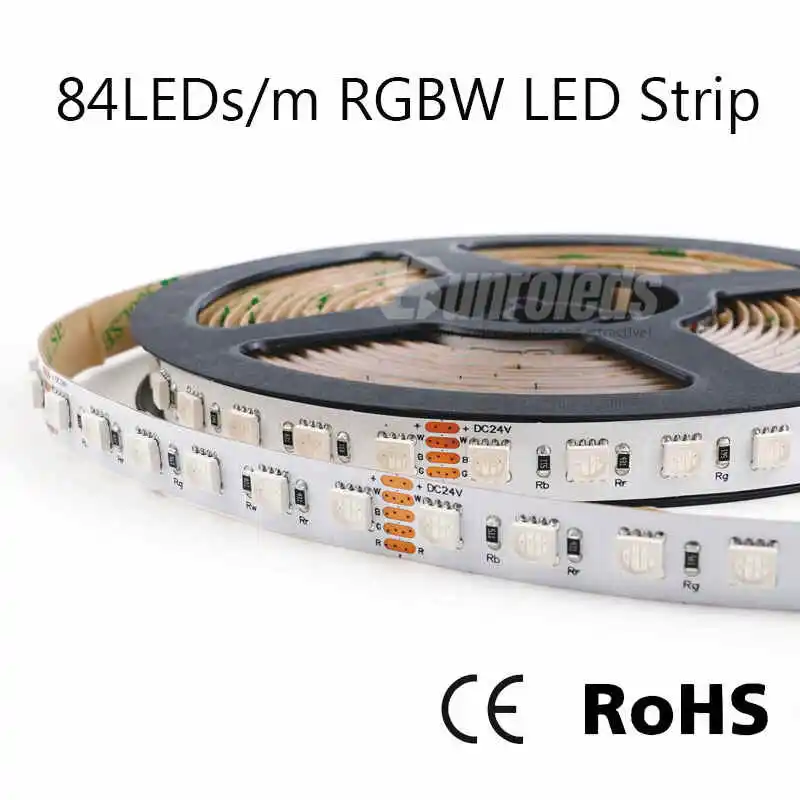

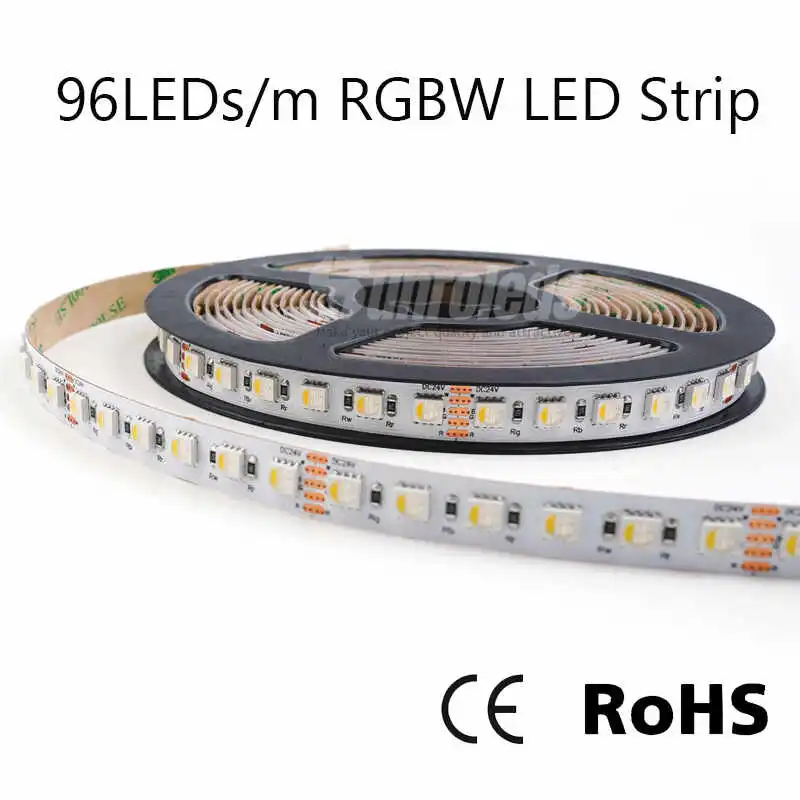

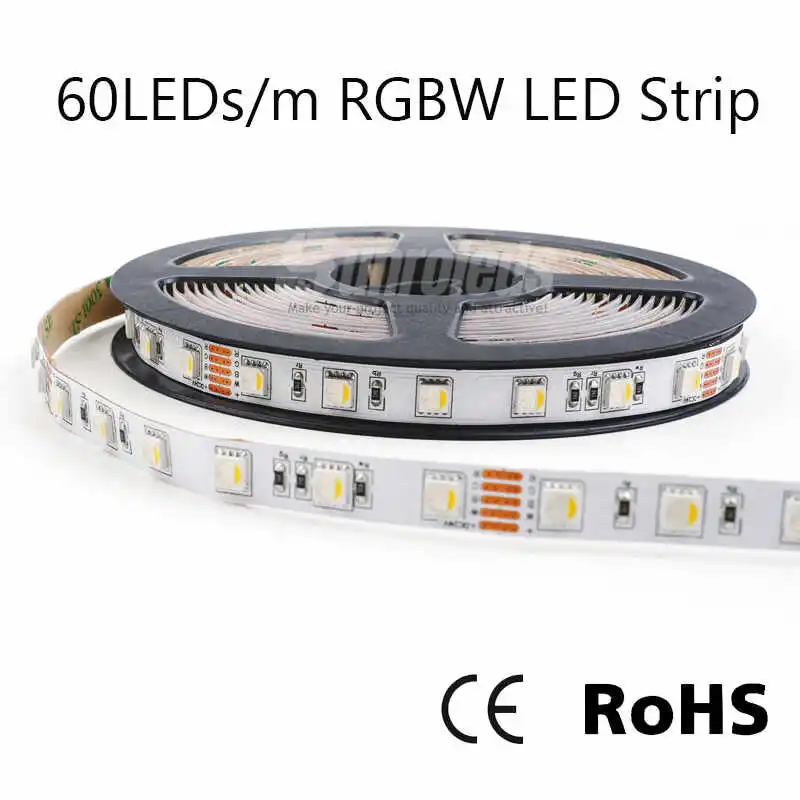

RGBW LED Strips (4-in-1)

RGBW LED strips is fitted with 4-in-1 RGBW LED, single 4 chip integrated with RGB and White LED. it is a perfect match for the 2 million-plus color combinations produced by the RGB LEDs. You can choose RGB and White color. The mixing effect of White and RGB is achieved by RGBW Controller. This fabulous light is ideal for adding mood and color to areas in your home or business inside

certification

Technical Parameter

Part NO SR-NP-60RGBW SR-NP-84RGBW SR-NP-96RGBW
LED Type: 5050 RGBW LED 4-in-1 5050 RGBW LED 4-in-1 5050 RGBW LED 4-in-1
LED Qty/m: 60leds/m 84leds/m 96leds/m
CRI: >80 >80 >80
SDCM: <5 <5 <5
Voltage: DC12V/24V DC12V/24V DC12V/24V
Power: 19.2W 26.8W 30.7W
PCB Width: 10mm/12mm 12mm 12mm
Lumen: 1170Lm/m 1634Lm/m 1831Lm/m
Colors: RGB RGB RGB
View angle: 120° 120° 120°
Cut Unit: 12V:50mm/24V:100mm 12V:35.7mm/24V:71.4mm 62.5mm
Connection Wire: 20AWG 20AWG 20AWG
Working Temperature: -10° C –+45° C -10° C — +45° C -10° C – +45° C
IP Rated: IP20/IP65/IP67/IP68 IP20/IP65/IP67/IP68 IP20/IP65/IP67/IP68
Warranty: 3 years warranty 3 years warranty 3 years warranty

Dimension

size
