3528 LED Tape Lights
Our 3528 LED Strip light is powered by Top quality 3528 SMD LED, High quality, Good brightness, High CRI, Flexible, It is ideal for Decoration,office,Commerical Lighting,Cove Lighting and signage.
- Powered by Top LED,High Brightness, Low Light decay;
- CRI>90, SDCM<5, Color consistency;
- High quality Double sided Two-ounce FPC;
- Original 300LSE adhesive tape at the backside;
- It could be bent, twist and cut. Each 3 LEDs could be cut.
- Long working Hours;
High quality, High CRI>90
Technical Parameter
| Model NO | SR-NP-60X3528 | SR-NP-120X3528 | SR-NP-180X3528 | SR-NP-240X3528 |
|---|---|---|---|---|
| LED Type | 3528 SMD LED | 3528 SMD LED | 3528 SMD LED | 3528 SMD LED |
| LED Qty/m | 60leds/m | 120leds/m | 180leds/m | 240leds/m |
| CRI | CRI>90 | CRI>90 | CRI>90 | CRI>90 |
| SDCM | SDCM<5 | SDCM<5 | SDCM<5 | SDCM<5 |
| Voltage | DC12V / 24V | DC12V /24V | DC24V | DC12V /24V |
| Power | 4.8W/m | 9.6W/m | 14.4W/m | 19.2W/m |
| PCB Width | 5mm/8mm/10mm | 5mm/8mm/10mm | 10mm | 10mm/15mm |
| Lumen@3000K | Â 388Lm/m | 770Lm/m | 1166Lm/m | 1555Lm/m |
| Colors | W/R/G/B/Y | W/R/G/B/Y | W/R/G/B/Y | W/R/G/B/Y |
| White Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| View angle | 120° | 120° | 120° | 120° |
| Cut Unit | 12V:50mm/24V:100mm | 12V:25mm 24V:50mm | 24V:33.33mm | 12V:25mm 24V:50mm |
| Connection Wire | 20AWG | 20AWG | 20AWG | 20AWG |
| Working Temperature | -10° C till +45° C | -10° C till +45° C | -10° C till +45° C | -10° C till +45° C |
| Working Hours | >50000 hours | > 50000 hours | >50000 hours | >50000 hours |
| IP Rated | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 |
| Warranty | 3 years warranty | 3 years warranty | 3 years warranty | 3 years warranty |

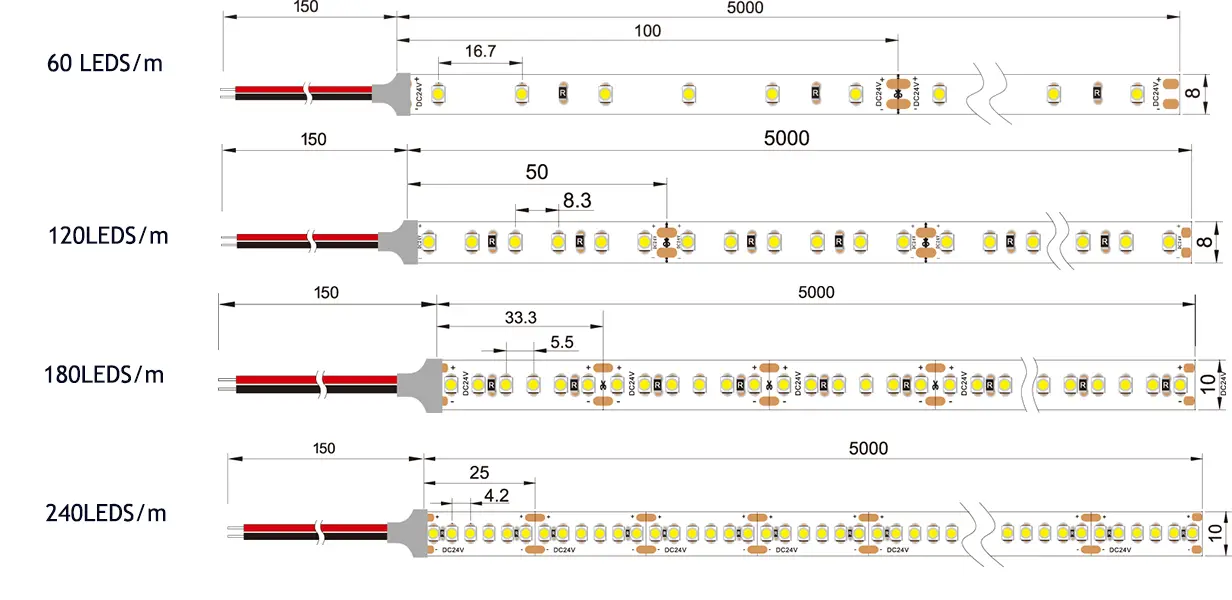

Dimension
Products
60 LEDS/m
3528 LED Strip Series
120LEDS/m
3528 LED Strip Series
Different Waterproof IP65/IP67/IP68 Available
