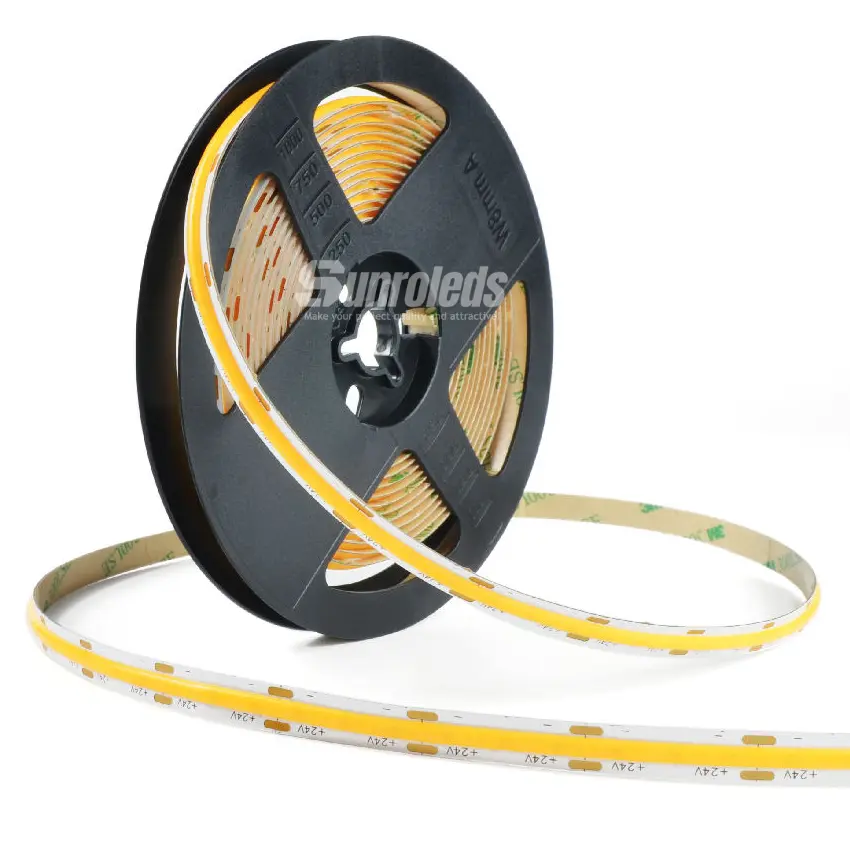

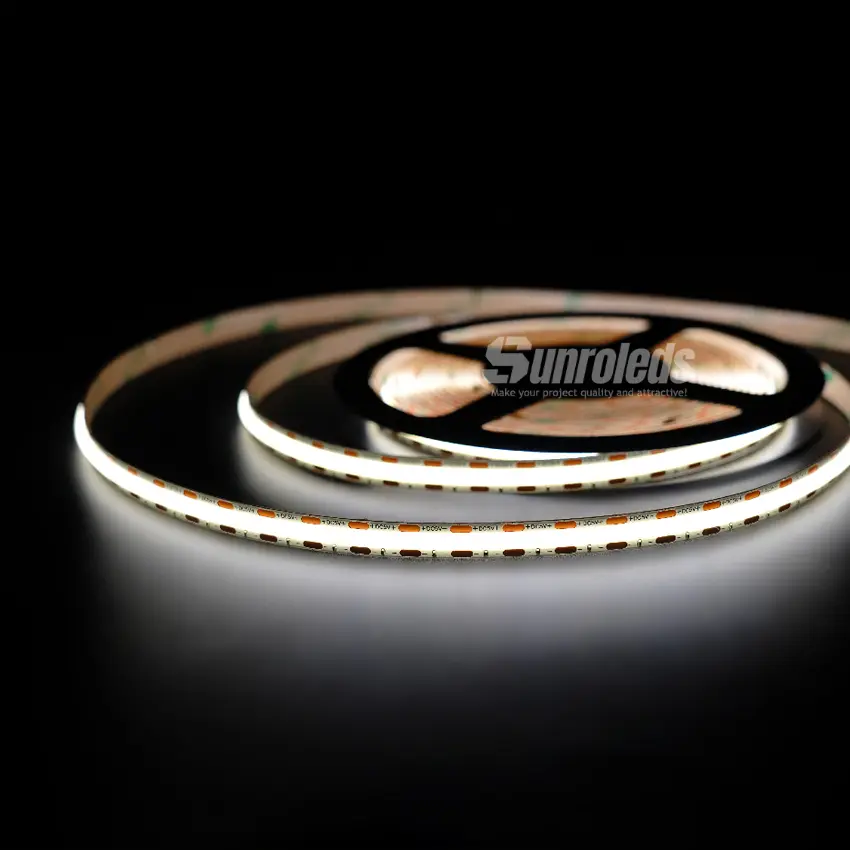

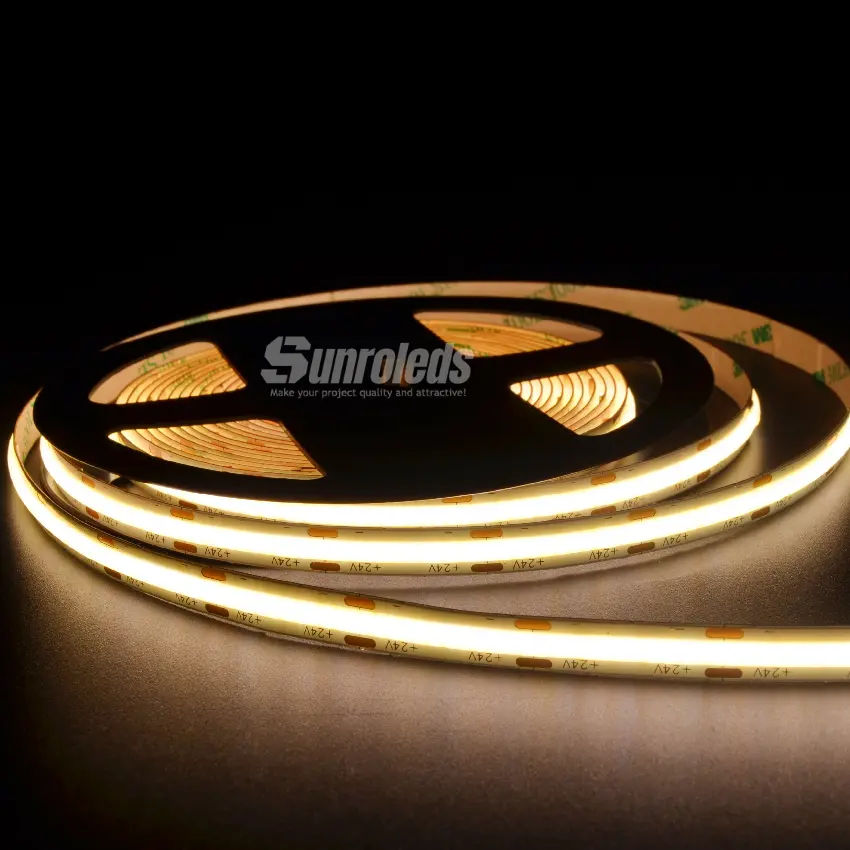

COB LED Strip
The COB LED strip light offers high brightness, low light decay, and superior color rendering (CRI>90). Available in 8 colors and various protection ratings (IP20/IP65/IP67/IP68), it ensures versatile, dot-free illumination with a lifespan of over 50,000 hours and a 3-year warranty. Ideal for cover, cabinet, furniture lighting, showcases, display paths, and backlighting.
Main Features
- High Quality: Ensures stable, consistent illumination with minimal light degradation.
- Superior Color Rendering: High CRI>90 for accurate and vibrant color representation.
- Color Options: Available in 8 different colors to suit various needs.
- Versatile Protection Ratings: Choose from IP20, IP65, IP67, and IP68 for different levels of water and dust resistance.
- Long Lifespan & Warranty: Offers over 50,000 hours of operation with a 5-year warranty.
- Dot-Free Illumination: Ideal for smooth, uninterrupted lighting in profiles.
Technical Parameter
Model | SR-COB-480X |
---|---|
LED Material: | Top COB LEDï¼› |
LED Quantity: | 480 leds/meter |
Voltage: | DC12V/24V |
Power Available: | 10W /12W |
CRI: | CRI>90, SDCM<3 |
Color Temperature: | Blue, Green, Red, Yellow, Plastic Pink, Orange, Tiffany Blue, Marrs Green, |
Wave Length: | Blue: 455-465nm; Green: 520-530nm;Â Red: 620-630nm; Yellow: 585-595nm; Orange: 595-605nm; |
Viewing angle: | 180° |
IP Rated: | IP20/IP65/IP67/IP68 |
FPC Width Optional | 8mm / 10mm |
Working temperature | -20 – +50°C |
Cuttable Length: | 25mm for 12V; 50mm for 24V |
Warranty | 5 years warranty |
Dimension
4mm,8mm,10mm Width Comparision
Frequent Asked question (FAQ)
Yes, we do offer more affordable pricing options. The price difference comes from the use of varying qualities of COB LED phosphor and Glue. Specifically:
- Standard Quality: Uses high-grade COB LED phosphor and Glue, ensuring optimal performance, brightness, Light efficiency and longevity. This option is covered by our 5-year warranty.
- ECO Quality: Features a more cost-effective COB LED phosphor and Glue, which allows for a lower price point. While this option is more budget-friendly, it still maintains high standards for durability and reliability, 3 years warranty. though it may not offer the same level of brightness and performance as the standard quality.
We are committed to providing value and can help you choose the best option based on your specific needs and budget. Please let us know if you would like more details or have any other questions.
Yes, you can cut the COB LED strip and still use the connectors. We offer three types of connectors to suit your needs:
- Straight Connectors: For joining two strips in a straight line.
- L-shaped Connectors: Ideal for making right-angle connections.
- T-shaped Connectors: Perfect for creating T-junctions in your lighting setup.
- X-shaped Connectors: For connecting four strips in a cross shape。
- Middle Wire Connectors: Featuring a 15cm wire for flexible middle connections.
- 15cm Long Wire Connectors: For extended length connections.
For more details, Please contact us
We offer both waterproof and non-waterproof models. The waterproof COB LED strips are suitable for outdoor and damp environments, with an IP65 rating or higher IP67,IP68.
Yes, many COB LED strip models support dimming functions. The brightness can be adjusted using a controller or dimmer switch. Some models also support smart control and are compatible with smart home systems, for example, Ajustable CCT COB LED Strip, CCT Tunable COB White LED Strip offer these advanced features.
The lifespan of COB LED strip light is typically over 50,000 hours, depending on the usage environment and conditions. All our COB LED strips undergo rigorous testing to ensure that, under suitable conditions, they can achieve or even exceed this lifespan.

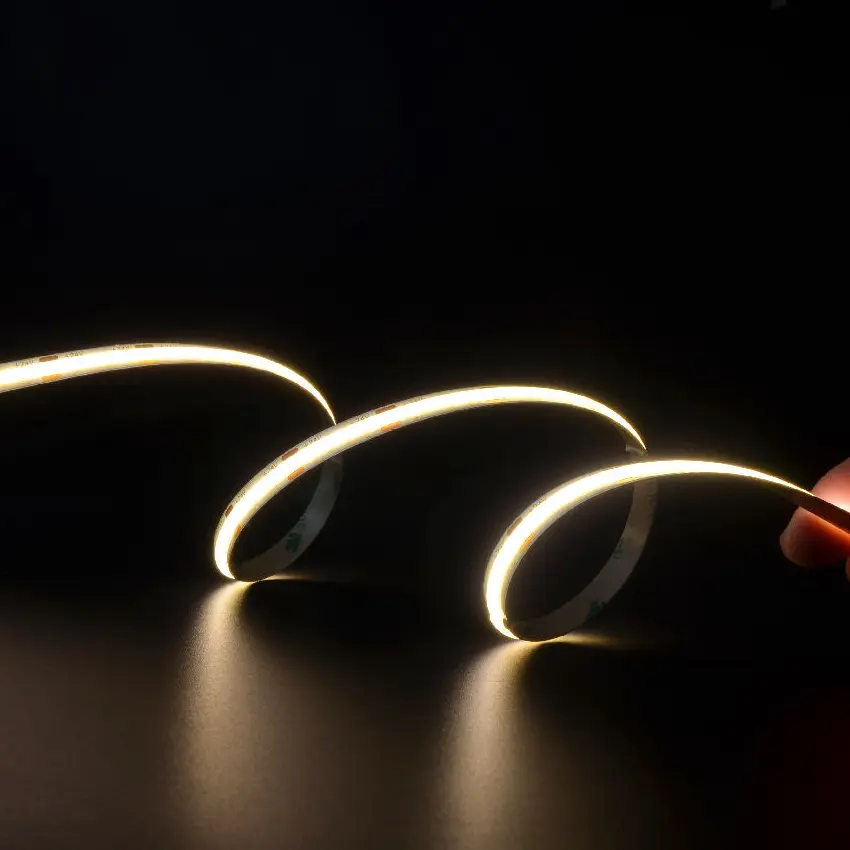

The COB LED Strip can be bent, but it should not be distorted or twisted. Bending should be done gently along the natural bending axis to ensure the strip’s integrity and performance.
We offer a unique COB LED Strip Free Cut Version, This innovative design allows you to cut the strip wherever you need, providing unparalleled flexibility for your lighting projects
No MOQ required. We value each clients, no matter wholesales or Project Client, No matter small orders or big orders. but more Quantity, More favorable price.
