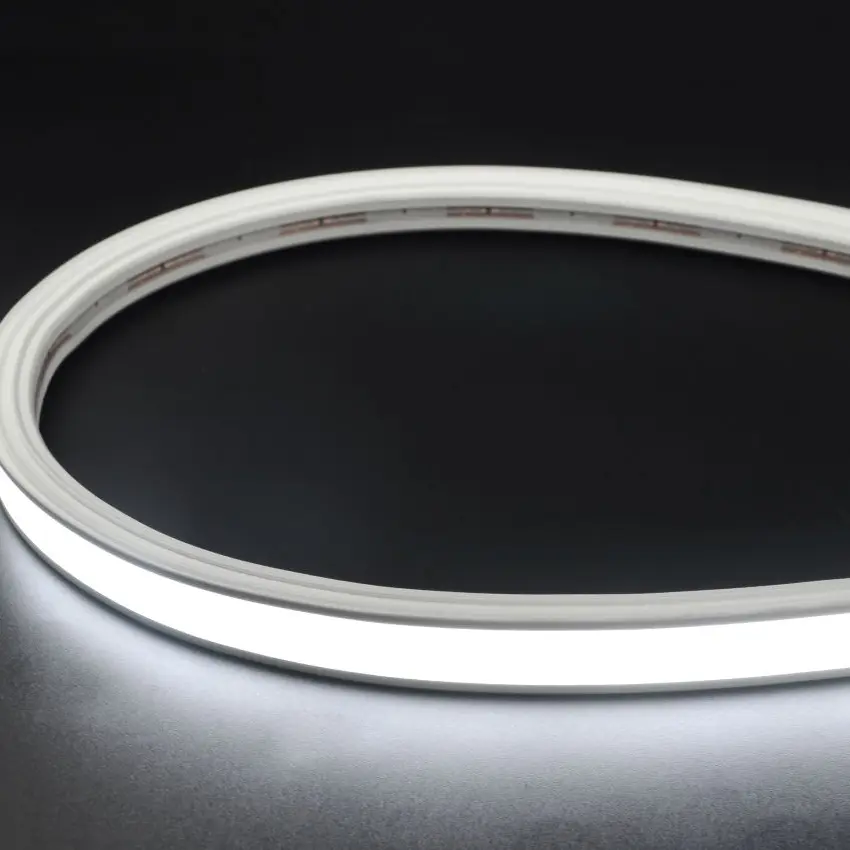

Embedded LED Neon Light
The Embedded silicone LED neon light strip 1220, side bending IP44, silicone integrated extrusion molding process; DC24V, horizontal bending, 1 way of outlet; The bending diameter is 150mm, IP44 waterproof rating; Yellowing resistance, UV resistance, salt and alkali resistance, high temperature resistance, uniform luminescence, no light spots, can shape different shapes;
Technical Parameter
| Part NO. | SR-NEON-EM1220X |
|---|---|
| LED Type: | Top LED 2835, CRI>90,SDCM<5 |
| Voltage: | DC24V |
| Driver Methord: | Constant Current / Constant Voltage |
| Power: | 10W |
| Lumen: | 397-475Lm / m |
| Colors available: | White(2000-6500K), red, blue, green, yellow, Orange,Pink,CCT, RGB,RGB+W |
| Beam angle: | 180 degree |
| Material: | American Brand Dow-corning Silicone, UV Reistance, Corrosion Resistance |
| Cuttable Length: | 50mm |
| IP Rated: | IP44 Rated |
| Dimension: | 12mm*20mm/(W*H) |
| Working temperature: | -25 – +60℃ |
| Cable: | PVC 20AWG Cable / Silicone 20AWG Cable |
| End Caps Available | Silicone End Caps |
| Accessories: | Silicone end Caps / IP67 End caps +20AWG Cable |
| Working Life: | >50000 working hours |
| Warranty | 3 years warranty |
