2216 LED Flexible Strips
The 2216 led strip Series are more ideal for small type of aluminum profiles. its CRI can be up to 95RA. the strip light feature color consistency, No Shadow, No Spot, long working life. It is wided used in Hospital, Hotel, Museum, office places
- Â Powered by Top LED 2216, SDCM<5. Color consitency;
- Â CRI>90 and CRI>95 optional;
- Â High quality Standard Double sided 2 Ounced Cooper FPC
- Original 3M Tape at back side;
- >50000 working Hours
High quality, High CRI>90
Technical Parameter
| Part NO: | SR-NP-120X2216 | SR-NP-180X2216 | SR-NP-240X2216 | SR-NP-300X2216 | SR-NP-420X2216 |
|---|---|---|---|---|---|
| LED Type: | 2216 SMD LED | 2216 SMD LED | 2216 SMD LED | 2216 SMD LED | 2216 SMD LED |
| LED Qty/m: | 120leds/m | 180leds/m | 240leds/m | 300leds/m | 420leds/m |
| CRI: | >90 | >90 | >90 | >90 | >90 |
| SDCM: | <5 | <5 | <5 | <5 | <5 |
| Voltage: | DC12V/24V | DC12V/24V | DC12V/24V | DC24V | DC24V |
| Power: | 9.6W/m | 14.4W/m | 19.2W/m | 20W/m | 24W/m |
| PCB Width: | 10mm | 10mm | 10mm | 10mm | 10mm |
| Lumen@3000K: | 750Lm/m | 1123Lm/m | 1500Lm/m | 1700Lm/m | 2050Lm/m |
| Colors: | WW/NW/CW | WW/NW/CW | WW/NW/CW | WW/NW/CW | WW/NW/CW |
| CCT: | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| View angle: | 120° | 120° | 120° | 120° | 120° |
| Cut Unit: | 24V:50mm | 24V:33.33mm | 24V:25mm | 24V:25mm | 24V:14.28mm |
| Connection Wire: | 20AWG | 20AWG | 20AWG | 20AWG | 20AWG |
| Working Temperature: | -10° C — +45° C | -10° C — +45° C | -10° C — +45° C | -10° C — +45° C | -10° C — +45° C |
| Working Hours: | >50000 hours | >50000 hours | > 50000 hours | >50000 hours | > 50000 hours |
| IP Rated: | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 |
| Warranty: | 3 years warranty | 3 years warranty | 3 years warranty | 3 years warranty | 3 years warranty |

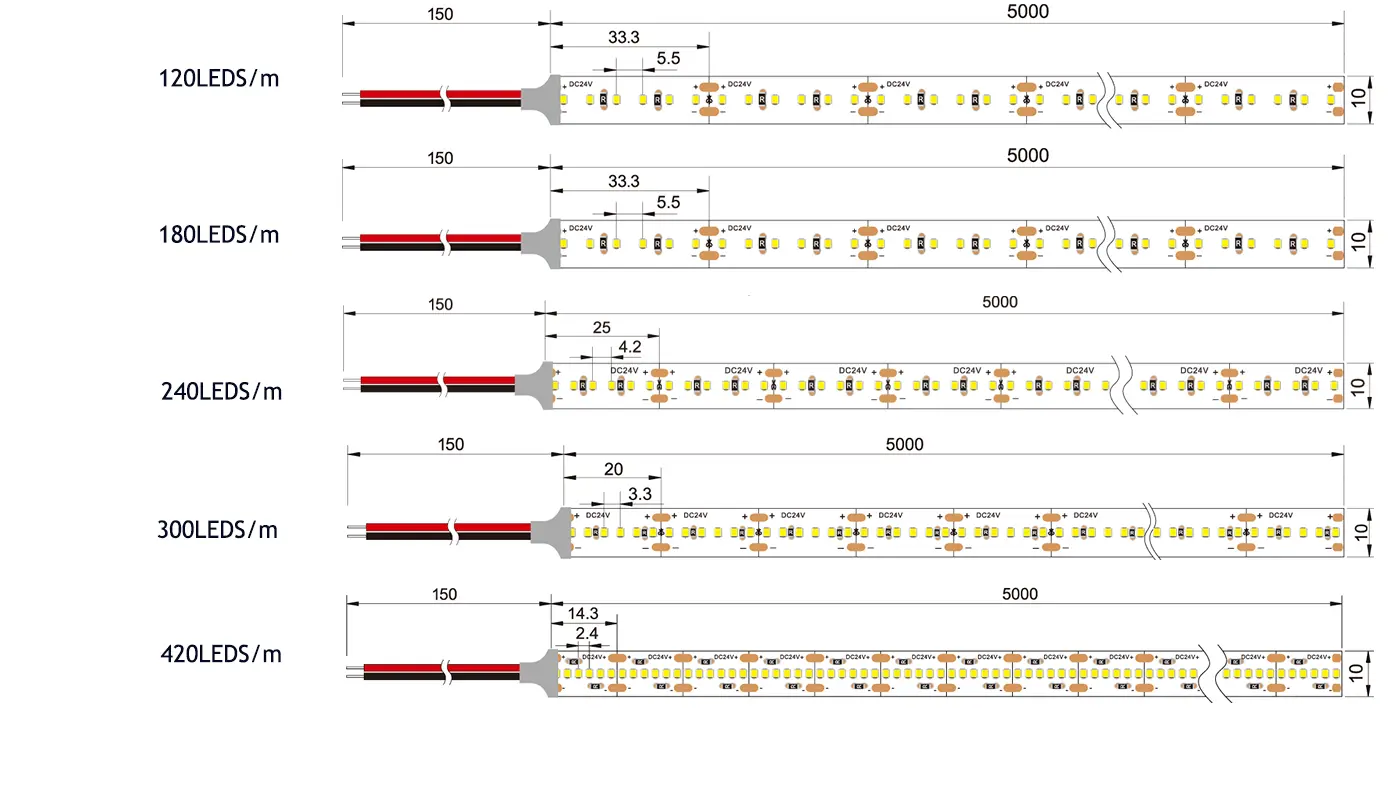

Dimension
Different Waterproof Versions available
