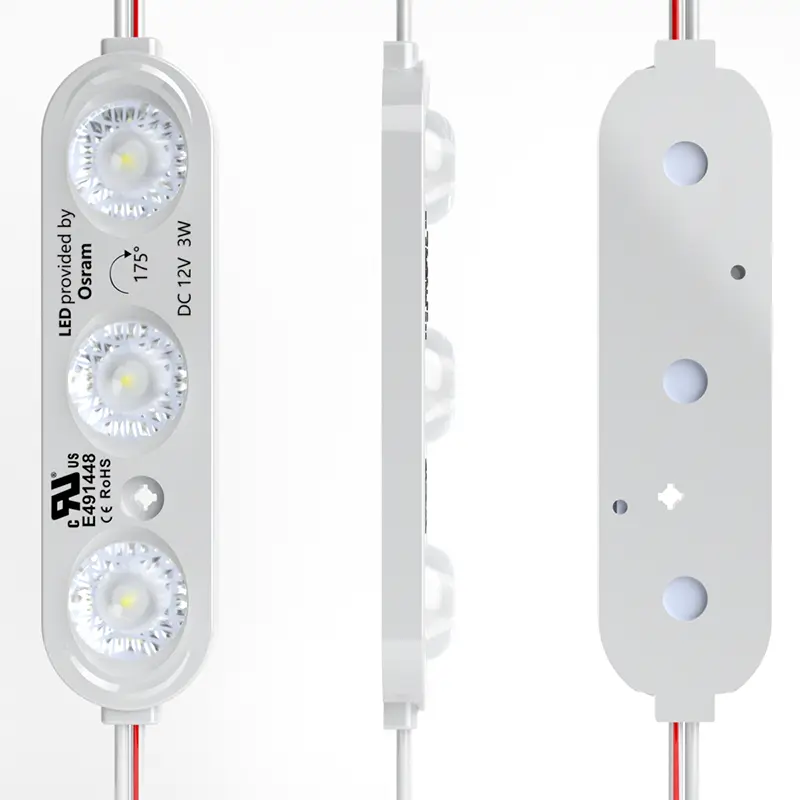

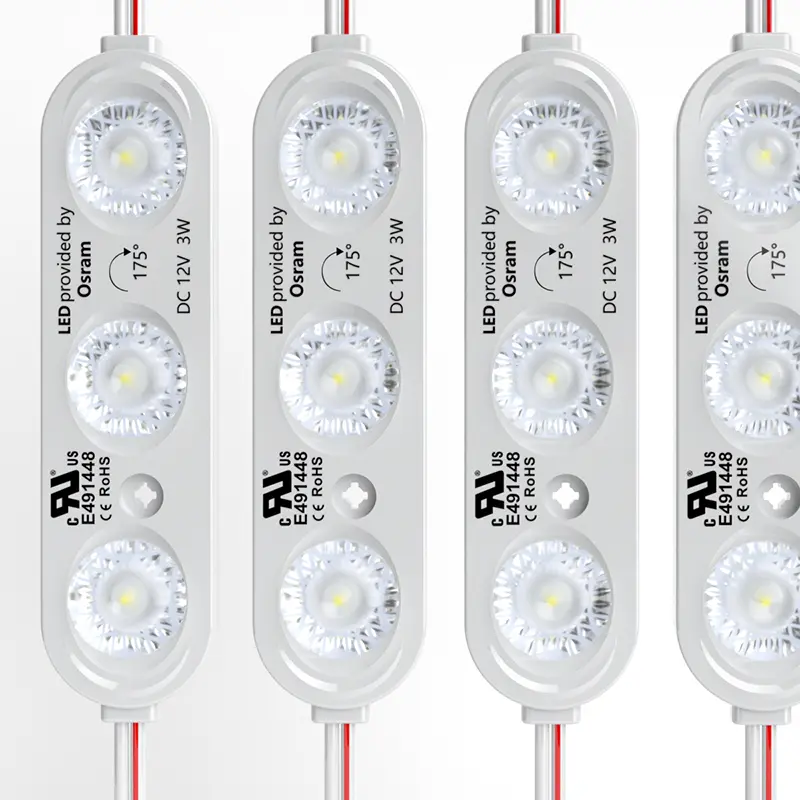

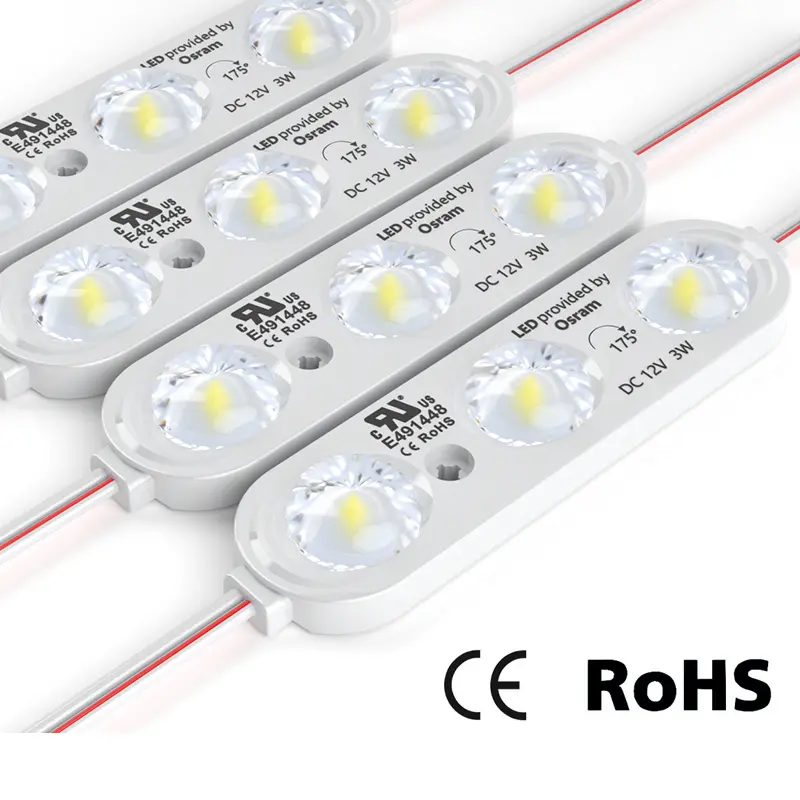

Osram LED Module

Features:

  •   Powered by bright Osram 2835 SMD LED
  •    DC12V low-voltage power supply, security and energy efficiency
  •   Injection molding process
  •   Aluminium base for good heat sinking
  •   175° angle
  •    100pcs per series
  •    5 years warranty
certification

Technical Parameter

Model SR-9022-3W2835
LED Brand Osram LED
LED Qty 3pcs 2835 LED
Voltage DC12V
Power 3Watt
Current 250mAh
Driver System Constant Voltage
Lumen 300-350Lm
CCT 2700-15000K
Viewing angle 175°
Size 90x22x8mm
Max connection in Series 20pcs/string
IP Rated IP65
Cable: UL Cable, 20AWG, 300V
Working Temperature -20℃- +60℃
Column 1 Value 15 5 years warranty

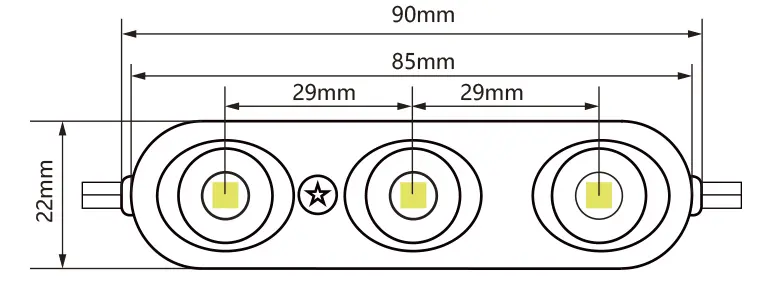

Dimension

size
