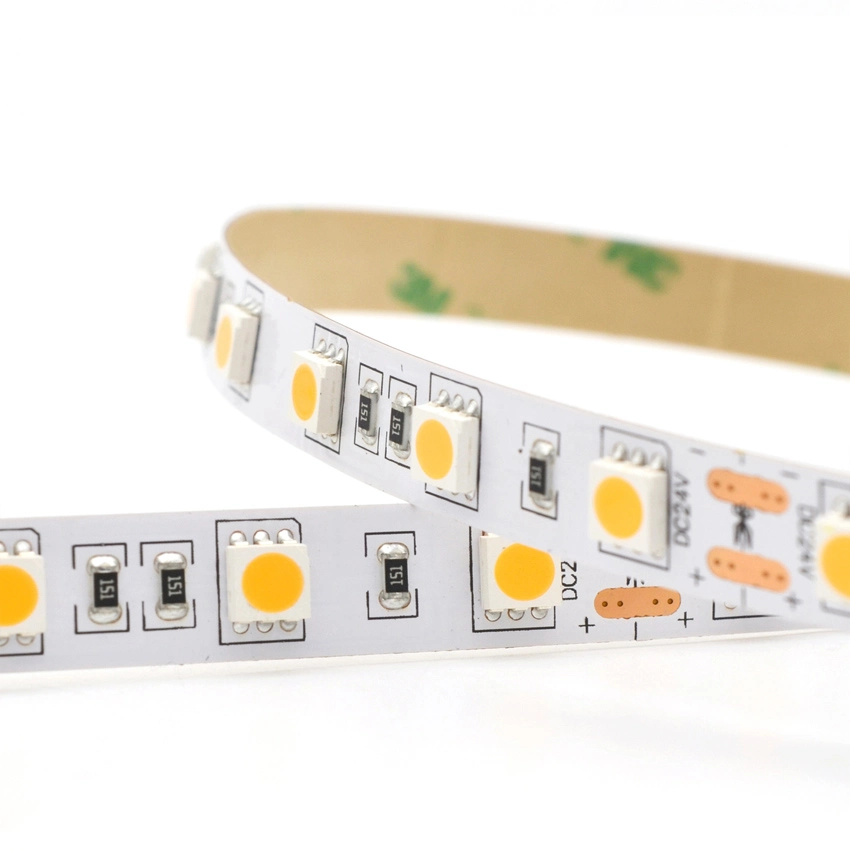

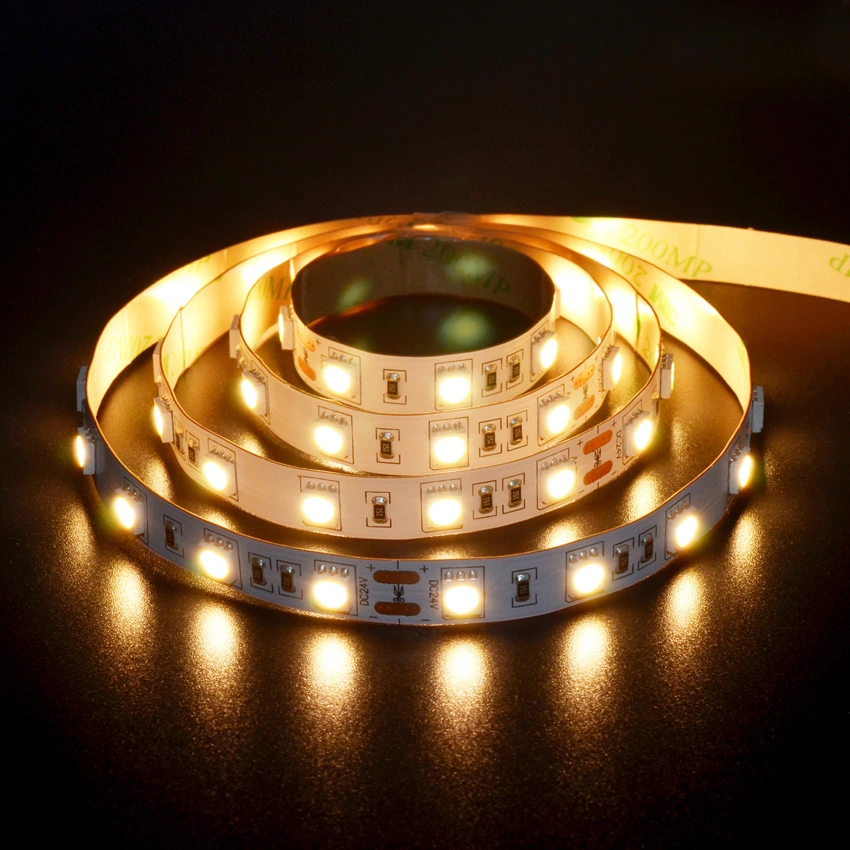

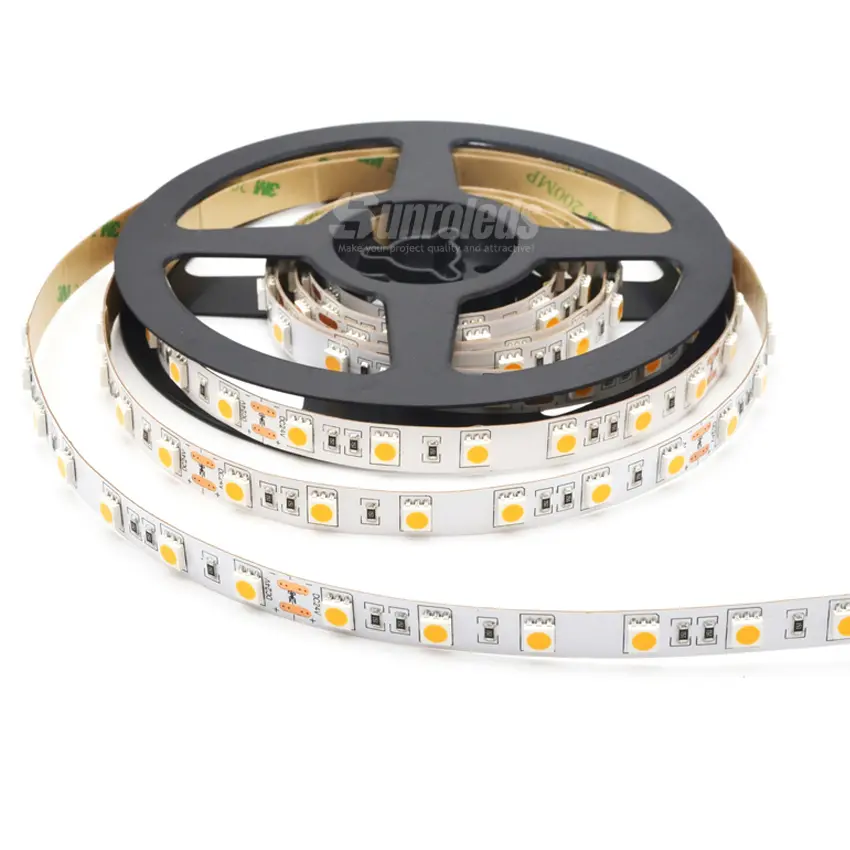

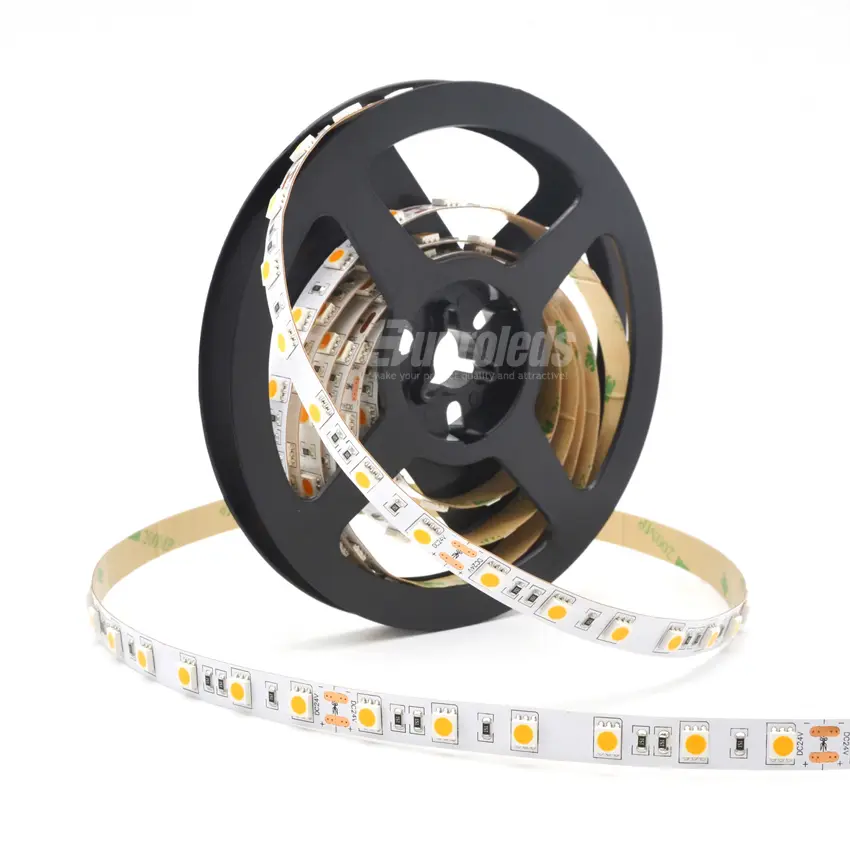

5050 LED Tape Lights
The 5050 LED Strip light series are powered by Top 5050 SMD LED, Big Chip, offering High lumen and a coprehensive range of color options to meet various lighting needs. Each meters has 30/60/72/96/120leds, and also welcome to customize your needs. It is ideal for Building Decoration,office,Commerical Lighting,Cove Lighting and Signage.
- High Brightness, High CRI>90, Color Consistency;
- High quality Double sided Two-ounce Cooper FPC;
- Orignal 3M adhesive tape at the backside;
- > 50000 working hours, 3 years warranty;
High quality, High CRI>90
Technical Parameter
Part NO | SR-NP-60X5050 | SR-NP-120X5050 |
---|---|---|
LED Type: | 5050 SMD LED | 5050 SMD LED |

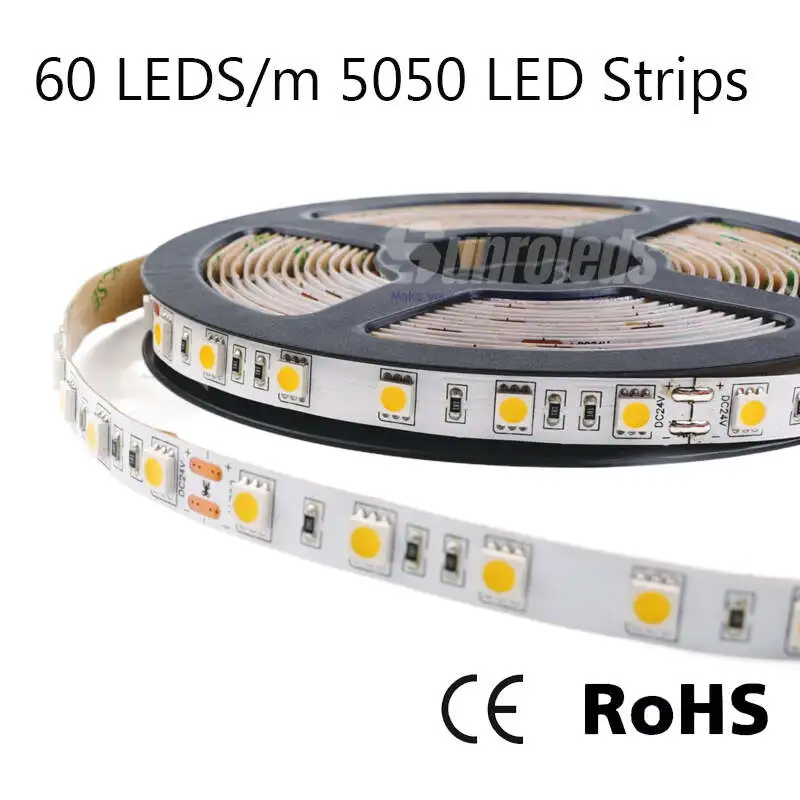

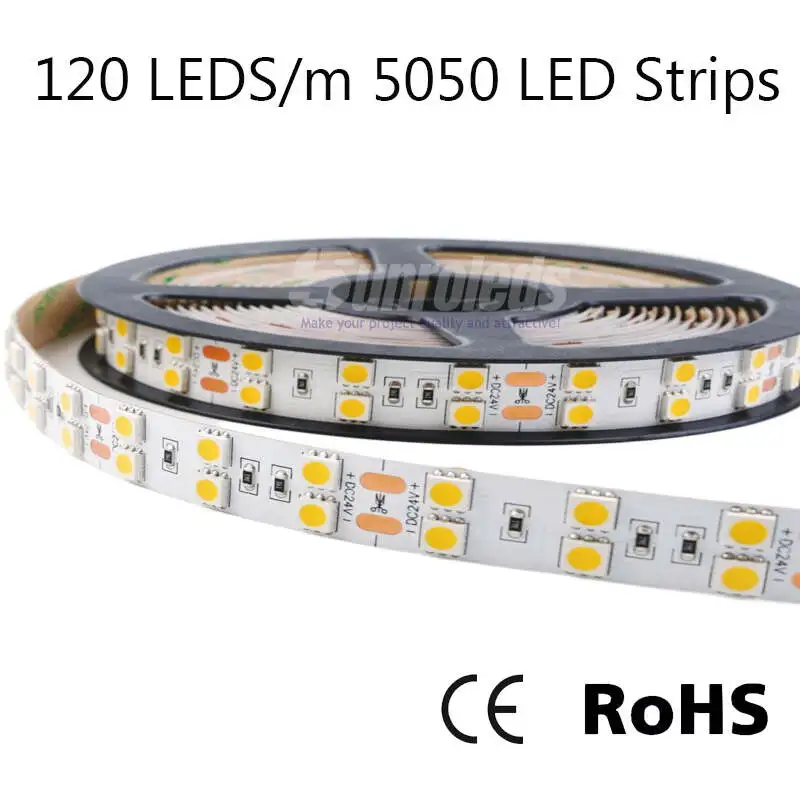

LED Qty/m: | 60leds/m | 120leds/m |
CRI: | >90 | >90 |
SDCM: | <5 | <5 |
Voltage: | DC12V/24V | DC12V/24V |
Power: | 14.4W/m | 28.8W/m |

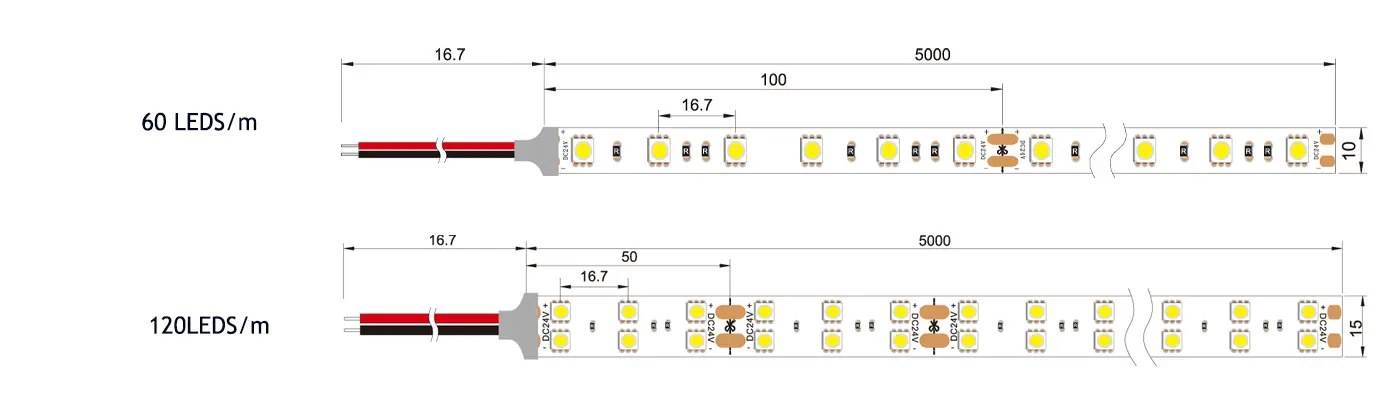

PCB Width: | 8mm/10mm/12mm | 15mm/20mm |
Lumen@3000K: | 1100Lm/m | 2200Lm/m |
Colors: | W/R/G/B/Y | W/R/G/B/Y |
White Color Tempearture: | 2700-6500K | 2700-6500K |

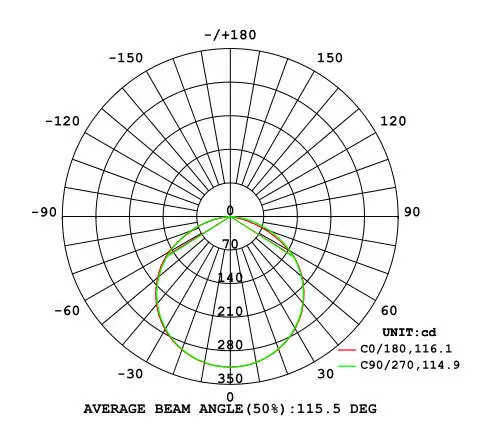

View angle: | 120° | 120° |
Cut Unit: | 12V:50mm/24V:100mm | 12V/24V:50mm |
Connection Wire: | 20AWG | 20AWG |
Working Temperature: | -10° C –+45° C | -10° C — +45° C |

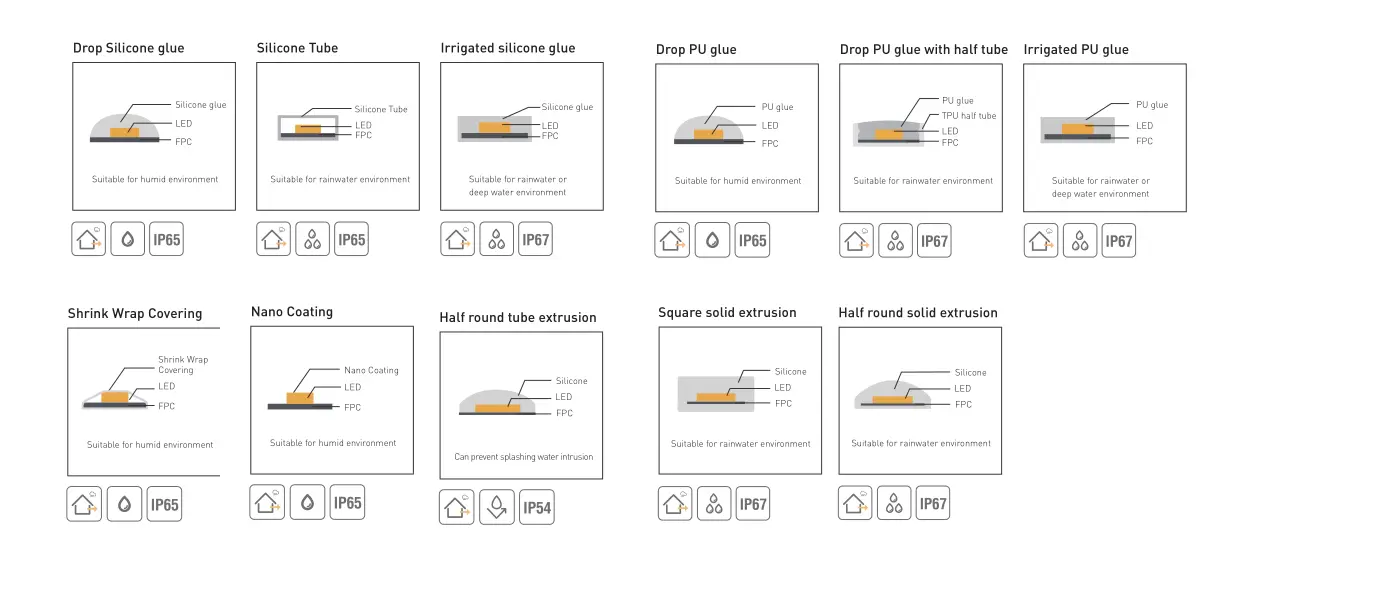

IP Rated: | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 |
Warranty: | 3 years warranty | 3 years warranty |
